2025 Trek Rail+ 9.9 XX AXS : Red : M

Trek Rail+ 9.9 XX AXS 2025 | Red

£12,000.00

Trek Rail+ 9.9 XX AXS 2025 | Full Suspension Electric Mountain BikeThe Rail+ 9.9 is our top carbon enduro e-MTB made for your most epic adventures. Its robust carbon frame packs 160 mm of front and rear upgraded RockShox suspension and adjustable geometry you can tune to how and where — Read More

Out of Stock
 £12,000.00
Out of Stock
 £12,000.00
Out of Stock
 £12,000.00
Out of Stock
 £12,000.00

By ticking the boxes above you agree to receive stock notifications from us by email.

Select a size

  • Small
  • Medium
  • Large
  • X-Large

Select a colour

  • Red

£

GTIN (UPC): 25TREKRAILPLUS99XXAXSRED Categories: , , ,

Spread the cost from £300.00 monthly*
Buying Guides

Description

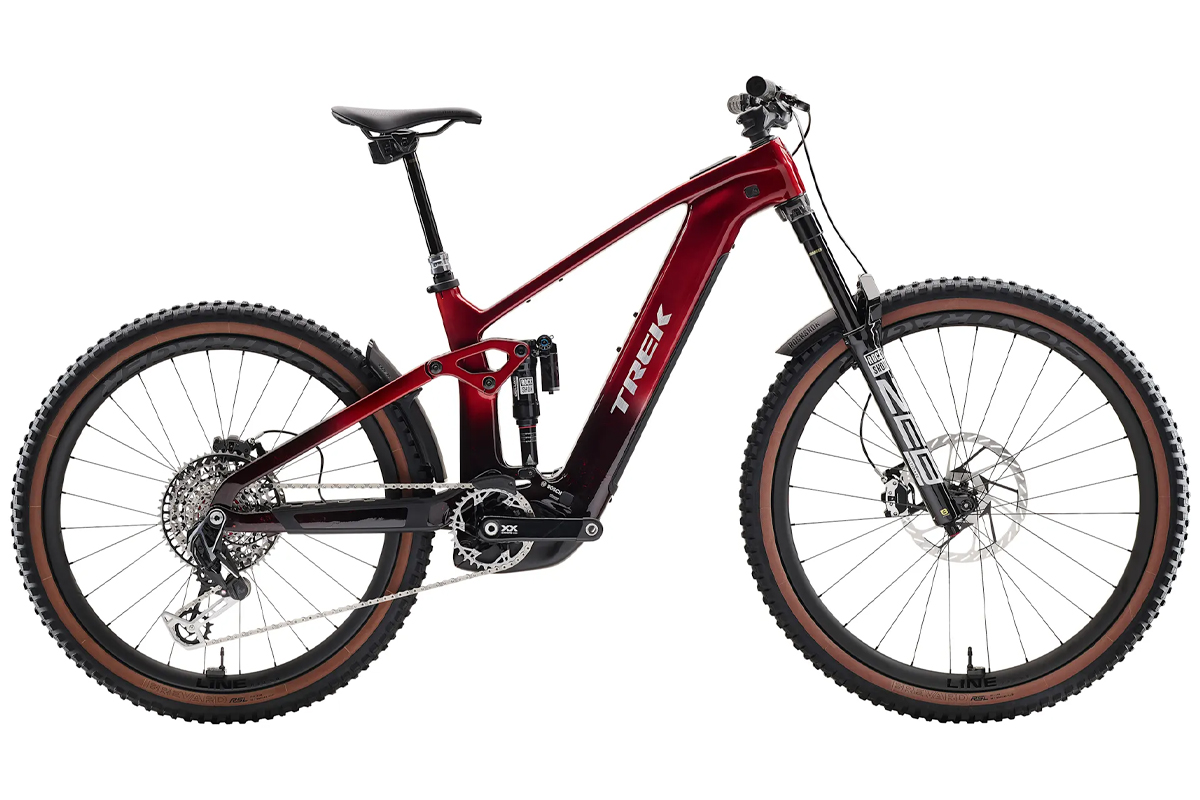

Trek Rail+ 9.9 XX AXS 2025 | Full Suspension Electric Mountain Bike

The Rail+ 9.9 is our top carbon enduro e-MTB made for your most epic adventures. Its robust carbon frame packs 160 mm of front and rear upgraded RockShox suspension and adjustable geometry you can tune to how and where you ride. It comes equipped with a Bosch CX Line motor that delivers serious torque for ripping up climbs and a huge 800 Wh RIB 2.0 removable integrated battery. It’s topped off with all the bells and whistles you want – like carbon wheels and a wireless SRAM XX transmission.

It’s right for you if…

You want a big, power-packed e-bike that’s built for massive adventure and doesn’t skimp on choice parts. You need plenty of travel for rough and rowdy terrain, a powerful motor that crushes climbs and massive battery to keep you going on your longest rides yet. Upgrades matter, and you want SRAM’s top wireless transmission and the added benefit of a RockShox suspension package.

The tech you get

An OCLV Mountain Carbon frame with Bosch Performance CX system (85 Nm, 250 W) and a massive 800 Wh RIB 2.0 removable integrated battery. A 160 mm RockShox ZEB Ultimate fork with DebonAir spring and Charger 3 RC2 damper, and RockShox Super Deluxe rear shock. Tubeless Ready Bontrager Line Pro 30 carbon wheels, SRAM’s top XX AXS wireless electronic transmission that shifts clean even under load, plus SRAM Maven hydraulic disc brakes for stopping on a dime and a RockShox Reverb AXS dropper post.

 Why you’ll love it

  1. The Rail+ delivers adventure with plenty of travel and power for getting after epic rides that take you peak to peak or chasing endless enduro laps
  2. You get upgraded everything – suspension, drivetrain, wheels and beyond
  3. You can tweak your geometry and suspension leverage rate for how you ride, and add in adjustable angle headset cups (sold separately) for even more adjustability
  4. The powerful Bosch Performance CX system goes full gas up steep climbs and keeps you cool for the descents
  5. The massive 800 Wh RIB 2.0 battery supports you for big miles and can be easily removed for travel or storage

The final word

The Rail+ 9.9 is the cream of the crop for epic e-bike adventures. It delivers an upgraded suspension package, a powerful motor for crushing big climbs and a massive battery that keeps you going mile after mile, plus, RockShox TyreWiz. This beast of a bike is built to deliver your every dream.



Please note – Size Small has a 27.5″ Front & Back Wheel.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Brand

Trek
Frame

OCLV Mountain Carbon, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH Boost148, 12 mm thru axle, 16
Rear Shock

RockShox Super Deluxe Ultimate RC2T, 205×65 mm
Fork

Rockshox ZEB Ultimate, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Head Set

Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible
Stem

Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 45 mm length
Handle Bars

Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
Tape Grips

Bontrager XR Trail Elite, nylon lock-on
Brakes

SRAM Maven Ultimate 4-piston hydraulic disc
Rear Derailleur

SRAM XX Eagle AXS, T-Type
Suspension

Full Suspension
Front Hub

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 27.5"
Suspension Travel

160mm
Cassette

SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
Chainset

SRAM XX Eagle,165 mm length
Pedals

VP-536 nylon platform
Wheels

Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29"
Front Tyre

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 29×2.50"
Rear Tyre

Bontrager Brevard RSL SE, Tubeless Ready, triple compound, aramid bead, 60 tpi, 27.5×2.50"
Saddle

Verse Short Comp, steel rails, 145 mm width
Seat Post

RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm
Battery

800 Wh RIB 2.0 removable integrated battery
Motor

Bosch Performance Line CX, 20 mph (25 km/h in Europe)
Discipline

MTB
Material

Carbon
Wheel size

MX
Electric

Yes
Season

2025
