Merida eSilex 400 2025 | Green/Brown

£2,500.00

Merida eSilex 400 2025 | Electric Gravel Bike700c wheel gravel eBike with Shimano GRX400 2 x 10 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh internal battery.The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle — Read More

GTIN (UPC): 25MERIDAESILEX400GRENBRWN Categories: , , ,

Spread the cost from £62.50 monthly*

Buying Guides

Description

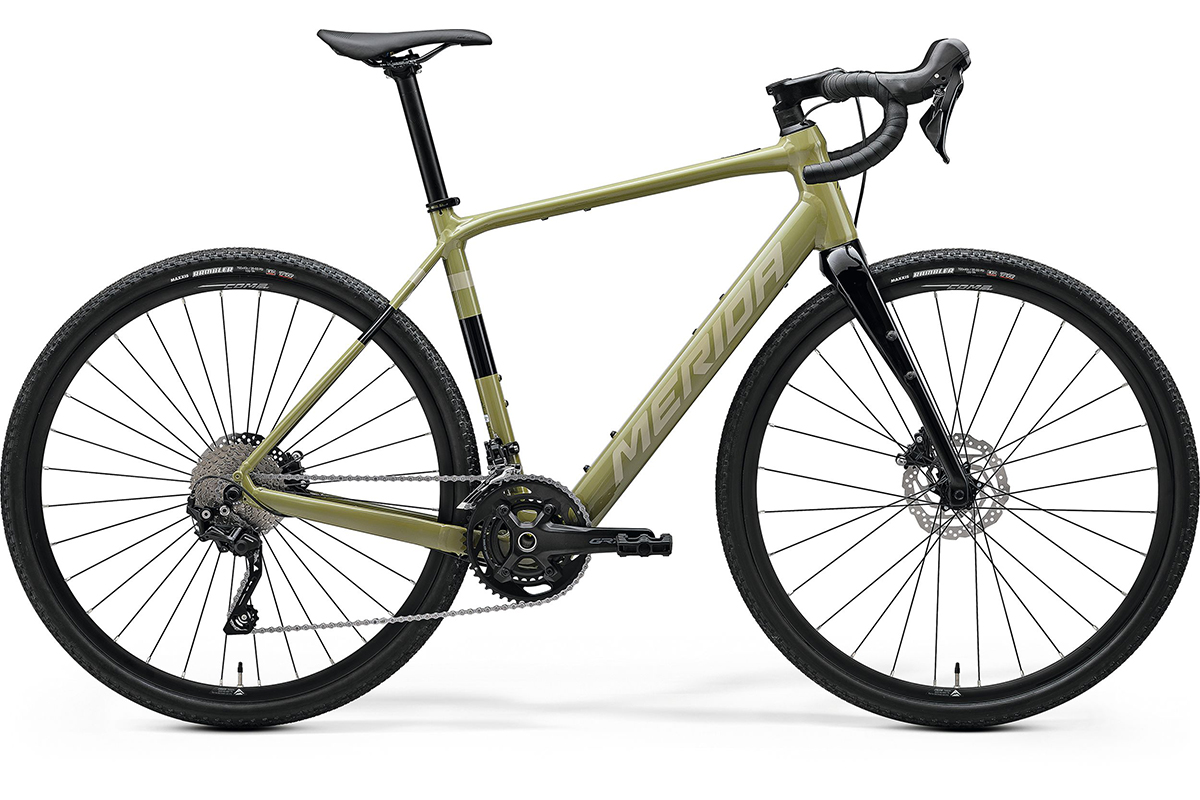

Merida eSilex 400 2025 | Electric Gravel Bike

700c wheel gravel eBike with Shimano GRX400 2 x 10 drivetrain powered by MAHLE ebikemotion 40Nm hub motor and 250Wh internal battery.

The dream ticket when discussed in the Merida UK office. A gravel bike with motor assistance, allowing you to go further, tackle more and generally just grin a lot.

MAHLE’s ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube.

The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it’s not engaged.

The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.

The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.

The eSilex can be run with either 700c or 650b wheels.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

Lite II – Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c
Fork

Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c
Head Set

Merida 8158
Stem

Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes
Handle Bars

Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL)
Tape Grips

Merida Expert
Brakes

Shimano GRX400
Rear Derailleur

Shimano GRX400
Front Hub

Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock
Shift Levers

Shimano GRX400
Cassette

Shimano CS-HG50; 11-36 teeth; 10 speed
Chainset

Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S/M, 175 mm-L/XL crank
Pedals

VP Components – VPE-891
Wheels

Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium
Front Tyre

Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO
Rear Tyre

Maxxis Rambler; 700 x 40C; Kevlar bead, folding; EXO
Saddle

Merida Comp SL; V-mount
Seat Post

Merida Expert; aluminium; 30.9mm diameter; in-line
Battery

250Wh
Motor

Mahle ix250Wh Battery Pack, Mahle X30 Hub motor, 40Nm
Wheel Size

700c
Discipline

Gravel
Electric

Yes
Season

2025
