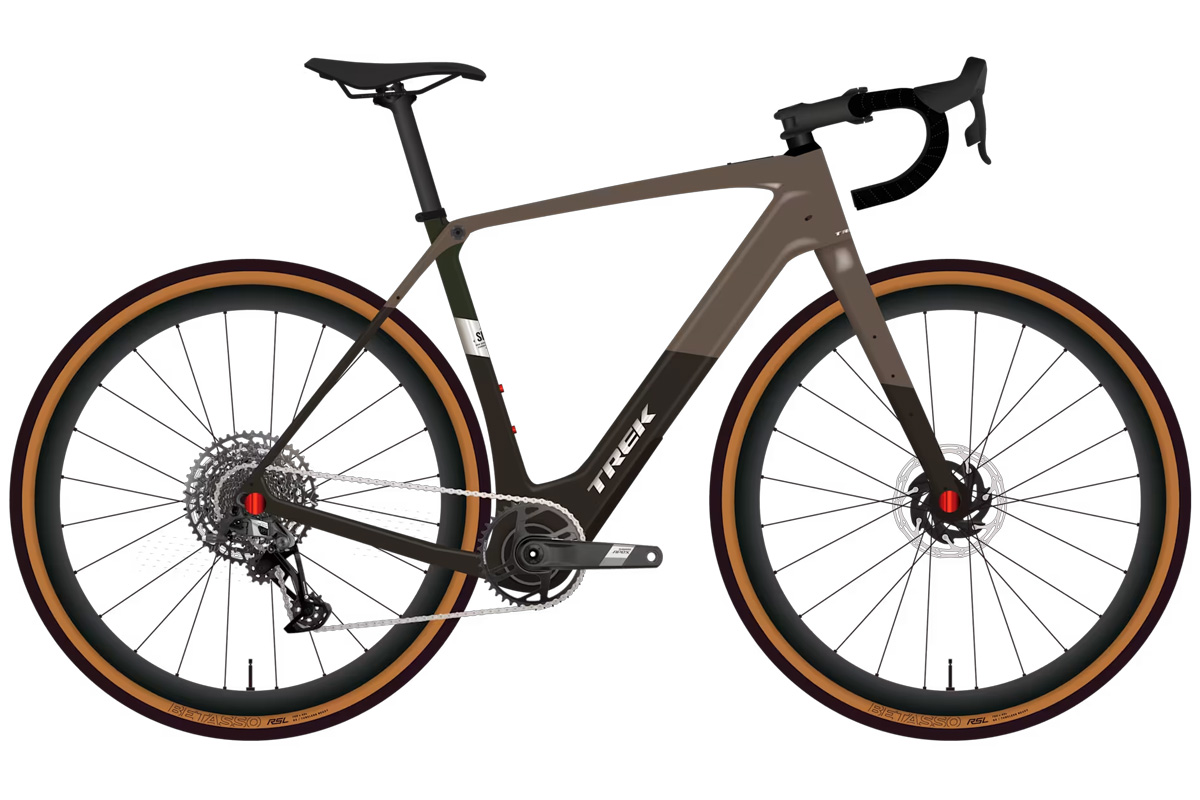

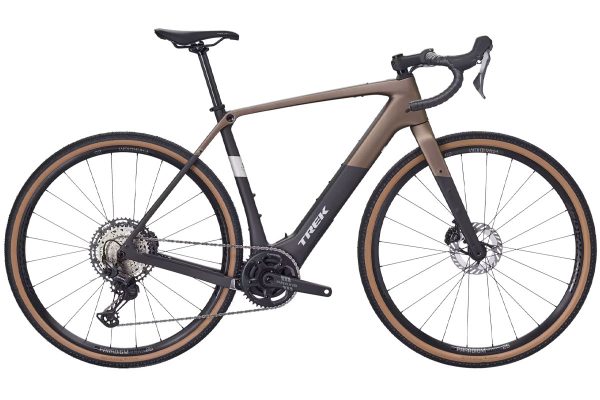

Trek Checkpoint+ SL 5 2026

£4,500.00

Trek Checkpoint+ SL 5 Electric Gravel BikeEffortless power, all-road adventure.The Trek Checkpoint+ SL 5 is an electric gravel bike engineered for epic off-road endurance, combining long-range capability with cutting-edge electric assist. Designed around Trek’s lightweight 500 Series OCLV Carbon frame, it features the whisper-quiet TQ-HPR60 motor and a seamlessly integrated — Read More

GTIN (UPC): 26TREKCHECKPOINTPLUSSL5 Categories: , , ,

Spread the cost from £112.50 monthly*

Buying Guides

Description

Trek Checkpoint+ SL 5 Electric Gravel Bike

Effortless power, all-road adventure.

The Trek Checkpoint+ SL 5 is an electric gravel bike engineered for epic off-road endurance, combining long-range capability with cutting-edge electric assist. Designed around Trek’s lightweight 500 Series OCLV Carbon frame, it features the whisper-quiet TQ-HPR60 motor and a seamlessly integrated 360 Wh battery, giving you smooth, natural-feeling power for climbing steep hills or crushing long gravel routes.

Built for performance and comfort, the Checkpoint+ SL 5 runs a Shimano GRX 12-speed drivetrain, ergonomic endurance geometry, and internal cable routing for a clean, refined look. Bontrager’s Tubeless Ready Paradigm Comp 25 wheels wrapped in Girona Pro 700×42 mm tyres deliver confident grip and ride feel across loose terrain, while the carbon fork and IsoSpeed frame tech smooth out the rough stuff.

Whether you’re bikepacking, racing gravel, or just out to explore further and faster, the Checkpoint+ SL 5 keeps you powered and comfortable for the long haul.

Key Features:

  • TQ-HPR60 motor: 60 Nm of torque with a max 350W peak power for natural-feeling pedal assist

  • 360Wh battery: Delivers extended range on demanding routes

  • Shimano GRX RX820 1×12 groupset: Gravel-specific gearing for precise, reliable shifting

  • OCLV Carbon frame: Lightweight and strong with integrated mounts for racks, bags and mudguards

  • Bontrager Paradigm Comp 25 wheels with Girona Pro 700x42c tyres: Fast-rolling and tubeless-ready for all-terrain grip

  • Endurance geometry and IsoSpeed tech: Enhance comfort on longer rides without compromising speed

Perfect for gravel adventurers, long-distance tourers, or riders chasing the horizon with electric support – the Trek Checkpoint+ SL 5 is built to go the distance.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142×12 mm chamfered thru axle
Fork

Trek Checkpoint, full carbon, tapered steerer, rack mounts, mudguard mounts, flat-mount disc, 12×100 mm thru axle
Stem

Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Handle Bars

Bontrager Elite Gravel, alloy
Tape Grips

Bontrager Supertack Perf tape
Rear Derailleur

Shimano GRX RX822, 36T max cog
Shift Levers

Shimano GRX RX820, 12-speed
Cassette

Shimano XT M8200, 10-51, 12-speed
Chainset

Praxis Alloy
Wheels

Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width
Front Tyre

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Rear Tyre

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700×42 mm
Saddle

Verse Short Comp, steel rails, 145 mm width
Seat Post

Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Battery

TQ 360Wh
Motor

TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Wheel Size

700c
Discipline

Gravel
Electric

Yes
Season

2026
