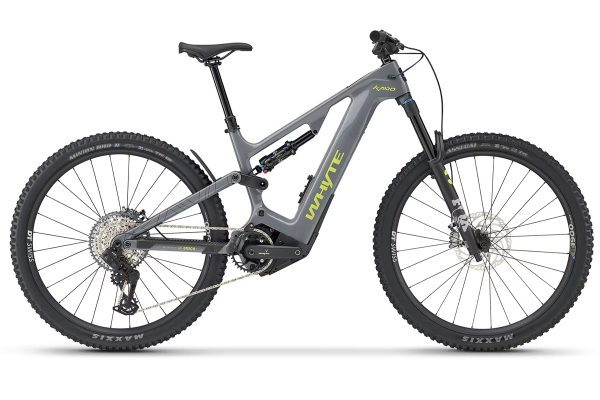

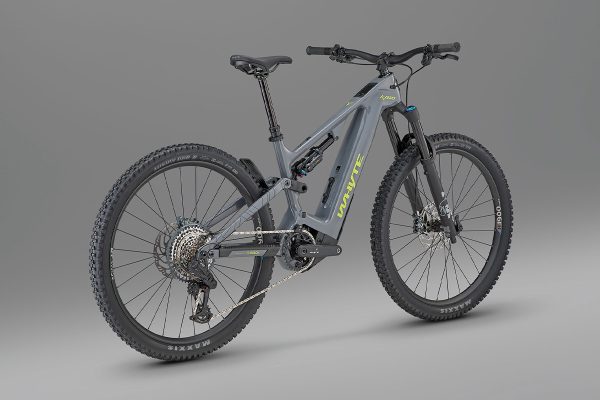

Whyte Kado RSX V2 2026 Electric Mountain Bike
The capability to do great things.
Kado RSX is Whyte’s most capable eMTB yet-engineered so you can push your ambitions further on every trail. Its ultra low centre of gravity carbon chassis, confidence inspiring geometry, and perfectly curated componentry give you total control whether you’re climbing, descending, or exploring all day epics. If you can dream it, Kado can do it.
Ideal for riders who want a highly capable, do everything eMTB that’s as reliable as it is rewarding to ride.
Key Features
- Uni directional carbon frame with Shape.it Link V2
- Fox 38 Performance Elite 160mm fork & Float X Performance Elite shock
- Bosch Performance Line CX Smart System with 800Wh PowerTube
- SRAM AXS T Type wireless 12 speed drivetrain
- DT Swiss Hybrid H1900 wheelset
- Maxxis Assegai / Minion DHR II tyres
- Magura MT7 203mm brakes
- TranzX +RAD adjustable dropper post
Frame & Suspension

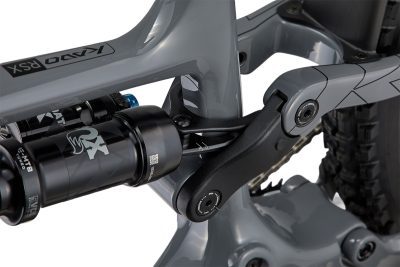

The uni directional carbon mainframe and rear triangle deliver exceptional stiffness and precision, with internal cable routing and Whyte’s Shape.it Link V2 for fine tuned geometry. A Fox Float 38 Performance Elite fork with Grip X2 damper and a custom tuned Fox Float X Performance Elite shock provide 160mm of front travel and controlled, supportive rear performance for aggressive trail riding.
Wheels & Tyres
DT Swiss Hybrid H1900 hubs, rims, and spokes create a robust wheelset built for eMTB torque and impact loads. Maxxis Assegai 29 x 2.5in EXO+ up front and Minion DHR II 29 x 2.4in Double Down at the rear deliver class leading grip, damping, and durability.
Drivetrain & Controls
A fully wireless SRAM AXS T Type 12 speed system provides crisp, consistent shifting under load, powered directly from the motor system. Whyte’s 155mm ISIS crank arms with a 36T direct mount chainring keep pedal strikes low and cadence smooth.
Cockpit & Contact Points
A Race Face Turbine 800mm bar, Whyte 35mm stem, and Whyte Enduro lock on grips create a confident, controlled cockpit. The TranzX +RAD dropper post offers size specific drop (150/170/200mm) for maximum clearance on steep terrain.
Braking

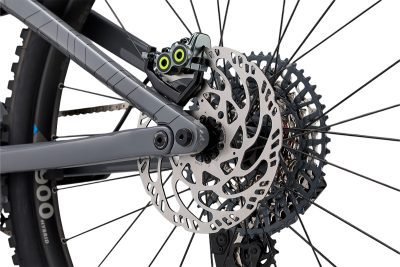

Magura MT7 hydraulic disc brakes with 203mm MDR C rotors provide powerful, fade resistant stopping performance, paired with one finger levers for precise modulation.
Motor & Electronics

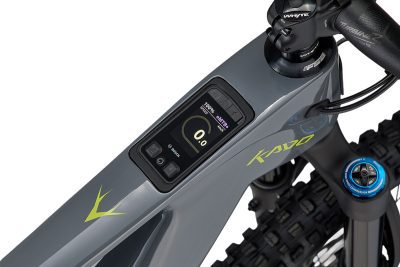

The Bosch Performance Line CX Smart System delivers 100Nm of torque, 750W peak power, and intuitive modes including Tour+ and eMTB+. The integrated Bosch Kiox 400C display sits cleanly in the top tube, with a discreet Mini Remote on the bar. The 800Wh PowerTube battery offers huge range and is compatible with the PowerMore 250Wh extender for ultra long days.
Battery & Charging
The 800Wh battery locks securely into the frame and removes easily when needed. A 4A charger (230V) ensures efficient charging at home or on the go.
Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.
