Trek CheckOUT SL 5 2026

£4,500.00

Trek CheckOUT SL 5 2026 Gravel BikeFull-suspension carbon gravel bike built for the wildest adventuresThe Trek CheckOUT SL 5 2026 is a purpose-built full-suspension gravel bike engineered for riders who crave off-the-grid exploration. Designed around Trek’s advanced 500 Series OCLV Carbon frame, this bike balances lightweight performance with rugged durability. — Read More

GTIN (UPC): 26TREKCHECKOUTSL5 Categories: , ,

Spread the cost from £112.50 monthly*

Buying Guides

Description

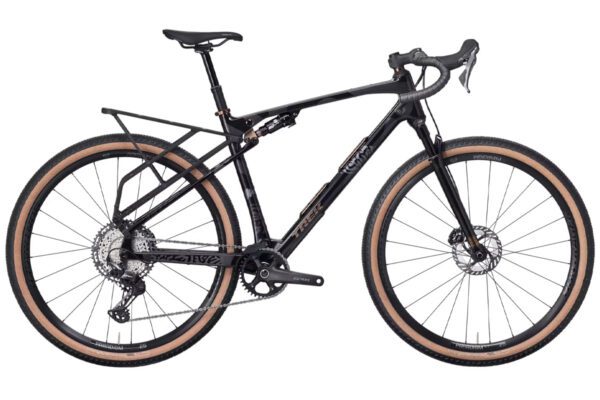

Trek CheckOUT SL 5 2026 Gravel Bike

Full-suspension carbon gravel bike built for the wildest adventures

The Trek CheckOUT SL 5 2026 is a purpose-built full-suspension gravel bike engineered for riders who crave off-the-grid exploration. Designed around Trek’s advanced 500 Series OCLV Carbon frame, this bike balances lightweight performance with rugged durability. Whether you’re riding remote fire roads, technical gravel trails or off-road singletrack, the CheckOUT SL 5 delivers comfort, control and capability like no other.

At its core is 55 mm of rear travel from the RockShox SIDluxe IsoStrut shock, working in harmony with a RockShox Rudy XL Ultimate fork offering 60 mm of front travel. The combination offers smooth handling across unpredictable terrain, backed by Bontrager Paradigm Comp wheels and 50 mm wide Betasso RSL GX tyres for grip and stability. A Shimano GRX 12-speed drivetrain and dropper post round out the spec, making this gravel machine trail-ready from day one.

Key Features

  • Frame: Lightweight 500 Series OCLV Carbon with 55 mm IsoStrut rear travel, rack and bag mounts included

  • Fork: RockShox Rudy XL Ultimate with 60 mm travel for confident front-end control

  • Drivetrain: Shimano GRX RX822 1×12 with wide-range 10-51T cassette

  • Wheels & Tyres: Bontrager Paradigm Comp 25 wheels paired with 700×50 mm tubeless-ready Betasso RSL GX tyres

  • Dropper Post: TranzX internal dropper for added confidence on descents

  • Cockpit: Width-specific Bontrager GR Checkout handlebars and Elite stem with Blendr compatibility

  • Weight Limit: Max total system weight of 125 kg (rider + bike + gear)

From gravel loops to overnight escapes, the Trek CheckOUT SL 5 is ready to take you far, far out there—no matter where the trail leads.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142×12 mm chamfered thru axle, 55 mm travel
Fork

RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12×100 mm thru axle, 60 mm travel
Stem

Bontrager Elite, 31.8 mm clamp, Blendr-compatible, 7-degree
Handle Bars

Bontrager GR Checkout
Tape Grips

Bontrager Supertack Perf tape
Rear Derailleur

Shimano GRX RX822, 36T max cog
Cassette

Shimano XT M8200, 10-51, 12-speed
Chainset

Shimano GRX RX610, 38T
Wheels

Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width
Front Tyre

Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700×50 mm
Rear Tyre

Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700×50 mm
Saddle

Verse Short Comp, steel rails, 145 mm width
Seat Post

TranzX JD-YSI36, 100 mm travel, internal routing, 31.6 mm, 328 mm length
Wheel Size

700c
Discipline

Gravel
Season

2026
