Trek Madone Road Bikes Buying Guide
The Trek Madone Gen 8 range is designed for riders who want aerodynamic speed, lightweight performance and modern integration in one complete package. With Full System Foil tube shaping, IsoFlow technology and a choice of Shimano or SRAM electronic groupsets, the Madone delivers race-ready efficiency and all-day comfort. Whether you are chasing personal bests, racing crits or leading fast group rides, the Madone offers the perfect balance of stiffness, comfort and aerodynamic advantage.
The line-up includes both SL and SLR models. Madone SL uses Trek’s 500 Series OCLV Carbon for performance and value, while Madone SLR uses the premium 900 Series OCLV Carbon for the lowest weight and highest stiffness. Across the range you will find internal cable routing, aero seatposts, carbon forks, tubeless-ready wheels and clearance for up to 32 mm tyres. The differences between models come down to frame material, wheel upgrades, cockpit integration and drivetrain choice.
What the Trek Madone Represents
The Madone platform is built for riders who want maximum aerodynamic efficiency without sacrificing comfort. Key characteristics include:
- Full System Foil aero shaping for reduced drag
- IsoFlow technology for improved comfort and airflow
- Lightweight 500 or 900 Series OCLV Carbon frames
- Shimano or SRAM 12-speed electronic drivetrains
- Tubeless-ready carbon or alloy wheels
- Integrated aero seatpost and hidden cable routing
- Clearance for up to 32 mm tyres
The result is a fast, smooth and efficient aero road bike that excels on climbs, flats and long-distance rides.
Model by Model Overview
Trek Madone SL 5 Gen 8 2026 | £2,900
Best for riders who want aero performance and unbeatable value.
- 500 Series OCLV Carbon frame
- Full System Foil shaping and IsoFlow
- Shimano 105 12-speed mechanical
- Bontrager Paradigm wheels
- 700×28 mm Bontrager R3 tyres
- Internal cable routing and aero seatpost
A fast, comfortable and great-value entry into the Madone range.
Trek Madone SL 6 Gen 8 2026 | £4,000
Best for riders who want electronic shifting and carbon wheels at a smart price.
- 500 Series OCLV Carbon frame
- Shimano 105 Di2 12-speed electronic
- Bontrager Aeolus Elite 50 carbon wheels
- RCS Pro stem and integrated cockpit
- 700×28 mm tubeless-ready tyres
A high-performance aero bike with modern tech and excellent value.
Trek Madone SL 7 Gen 8 2026 | £5,400.00
Best for riders who want Ultegra Di2 and a fully integrated carbon cockpit.
- 500 Series OCLV Carbon frame
- Shimano Ultegra Di2 12-speed wireless
- Bontrager Aeolus Pro 51 carbon wheels
- Integrated carbon bars and RCS Pro stem
- 32 mm tyre clearance
A race-ready aero bike with premium components and smooth electronic shifting.

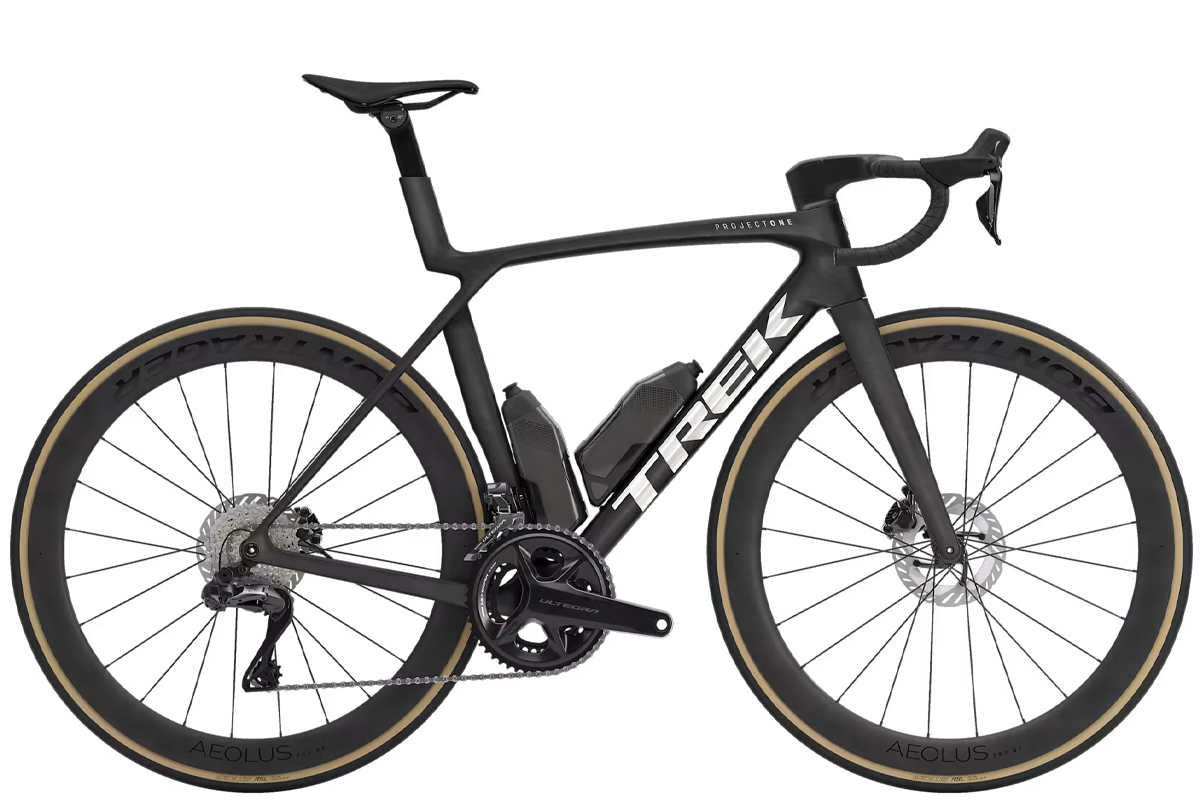

Trek Madone SLR 7 Gen 8 2026 | £7,250.00
Best for riders who want the lightest, fastest Shimano-equipped Madone.
- 900 Series OCLV Carbon frame
- Full System Foil shaping and IsoFlow
- Shimano Ultegra Di2 2×12
- Bontrager Aeolus Pro 51 carbon wheels
- One-piece Trek Aero RSL bar and stem
- Integrated RSL Aero Bottles and Cages
A top-tier race bike built for maximum speed and aerodynamic efficiency.
Trek Madone SL 6 AXS Gen 8 2026 | £4,000.00
Best for riders who want SRAM Rival AXS electronic shifting and carbon wheels.
- 500 Series OCLV Carbon frame
- SRAM Rival AXS E1 2×12
- Bontrager Aeolus Elite 50 carbon wheels
- RCS Pro stem and alloy bars
- 700×28 mm tubeless-ready tyres
A fast, modern aero bike with wireless shifting at a competitive price.
Trek Madone SLR 7 AXS Gen 8 2026 | £7,700.00
Best for riders who want the ultimate SRAM-equipped Madone with power meter.
- 900 Series OCLV Carbon frame
- SRAM Force AXS E1 2×12 with power meter
- Bontrager Aeolus Pro 51 carbon wheels
- One-piece Trek Aero RSL cockpit
- RSL Aero Bottles and Cages
A premium aero race bike for riders who want maximum performance and data-driven training.
Trek Madone Gen 8 Specification Comparison
| Model | Frame Material | Groupset | Wheels | Key Tech | Price |
|---|---|---|---|---|---|
| Madone SL 5 Gen 8 (2026) | 500 Series OCLV Carbon | Shimano 105 12-speed mechanical | Bontrager Paradigm alloy | Full System Foil shaping, IsoFlow, internal routing | £2,900 |
| Madone SL 6 Gen 8 (2026) | 500 Series OCLV Carbon | Shimano 105 Di2 12-speed electronic | Bontrager Aeolus Elite 50 carbon | Full System Foil shaping, IsoFlow, RCS Pro stem | £4,000 |
| Madone SL 7 Gen 8 (2026) | 500 Series OCLV Carbon | Shimano Ultegra Di2 12-speed wireless | Bontrager Aeolus Pro 51 carbon | Integrated carbon cockpit, IsoFlow, aero seatpost | £5,400 |
| Madone SLR 7 Gen 8 (2026) | 900 Series OCLV Carbon | Shimano Ultegra Di2 12-speed wireless | Bontrager Aeolus Pro 51 carbon | Full System Foil shaping, IsoFlow, RSL Aero bottles and cages | £7,250 |
| Madone SL 6 AXS Gen 8 (2026) | 500 Series OCLV Carbon | SRAM Rival AXS E1 2×12 wireless | Bontrager Aeolus Elite 50 carbon | IsoFlow, internal routing, RCS Pro stem | £4,000 |
| Madone SLR 7 AXS Gen 8 (2026) | 900 Series OCLV Carbon | SRAM Force AXS E1 2×12 wireless with power meter | Bontrager Aeolus Pro 51 carbon | Full System Foil shaping, IsoFlow, RSL Aero bottles and cages | £7,700 |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS (47 cm) | 143 to 158 cm / 4’8″ to 5’2″ | 67 to 74 cm / 26″ to 29″ |
| S (50 cm) | 158 to 162 cm / 5’2″ to 5’4″ | 74 to 76 cm / 29″ to 30″ |
| M (52 to 54 cm) | 162 to 173 cm / 5’4″ to 5’8″ | 76 to 81 cm / 30″ to 32″ |
| ML (56 cm) | 173 to 179 cm / 5’8″ to 5’10” | 81 to 84 cm / 32″ to 33″ |
| L (58 cm) | 179 to 188 cm / 5’10” to 6’2″ | 84 to 88 cm / 33″ to 35″ |
| XL (60 to 62 cm) | 188 to 213 cm / 6’2″ to 7’0″ | 88 to 100 cm / 35″ to 39″ |

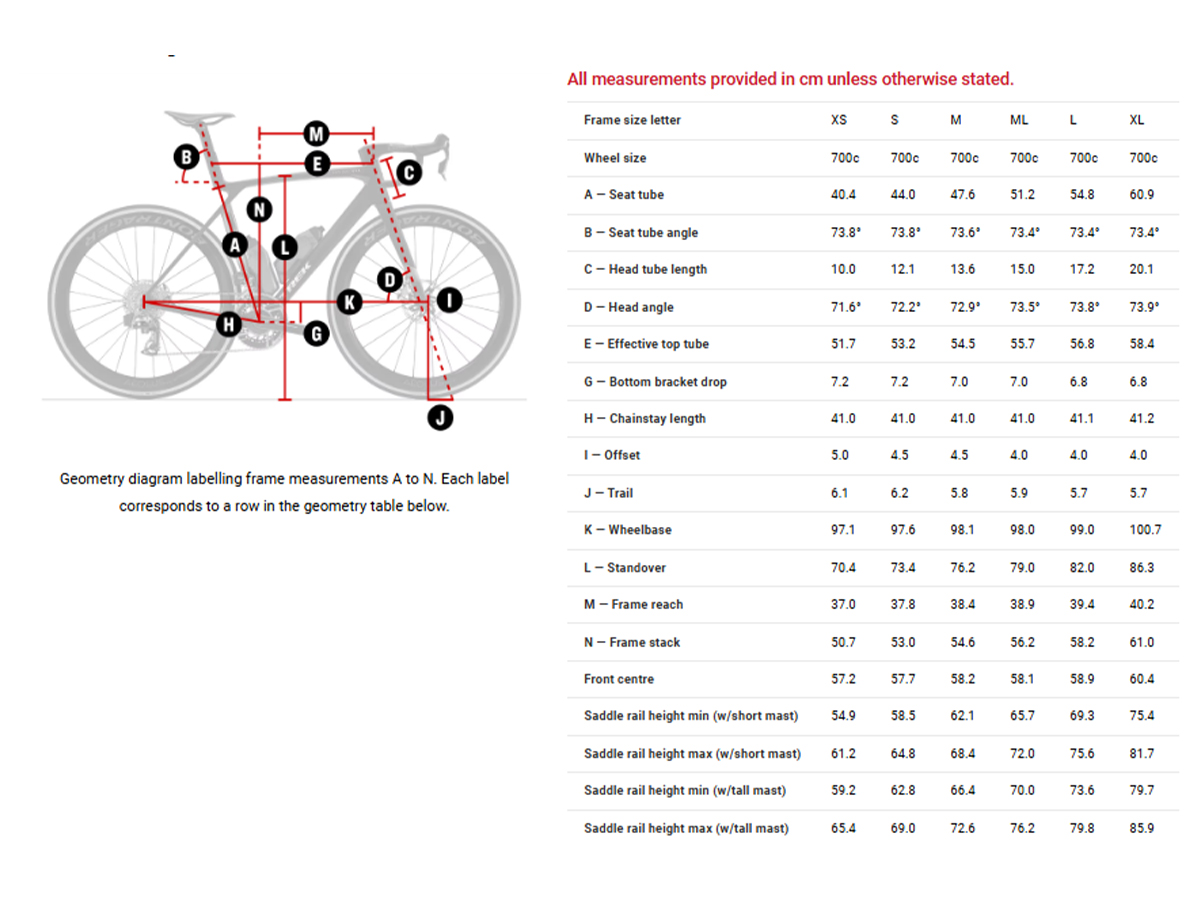

Geometry
Which Trek Madone Should You Choose
Choose the Madone SL 5 if you want:
- The best value entry into aero road riding
- Mechanical 105 and a fast carbon frame
Choose the Madone SL 6 if you want:
- Shimano 105 Di2 electronic shifting
- Carbon wheels at a smart price
Choose the Madone SL 7 if you want:
- Ultegra Di2 and a fully integrated carbon cockpit
Choose the Madone SLR 7 if you want:
- The lightest and fastest Shimano-equipped Madone
Choose the Madone SL 6 AXS if you want:
- SRAM Rival AXS wireless shifting and carbon wheels
Choose the Madone SLR 7 AXS if you want:
- SRAM Force AXS with power meter and the ultimate aero performance
Why Buy Your Trek Madone from Wheelbase
Wheelbase offers over 20 years of experience supplying performance road bikes, backed by trusted workshop standards and transparent stock availability. Every Madone is fully built, safety-checked and delivered ready to ride by qualified mechanics. We offer Cycle to Work, finance options and expert advice to help you choose the right aero bike for your goals. When you shop with Wheelbase, you get rider-first service, proven expertise and long-term support.
