Merida eTrilogy Range

eONE SIXTY CF – Low weight, uncompromised handling, maximum power.

Rider Profile: The performance-orientated rider and hardcore racer.

The eONE-SIXTY CF is for the performance-orientated rider and hardcore racer who inputs a high level of effort on top of motor assistance and values handling, agility and low weight over outright battery range. The rider likes to take on the toughest climbs and descents during training sessions and push the bikes to their limits in e-enduro races and demanding enduro runs.



eONE SIXTY Lite – Range is king. Full power, all the time.

RIDER PROFILE: The adventure-orienated and demanding rider

Maximum range paired with race-ready handling are the key elements for the eONE-SIXTY LITE rider. To be able to do multiple demanding e-enduro sessions or challenging long-distance races, the rider requires top-end performance, but values range over absolute handling ability and low weight. And while the rider is not shying away from an involving riding style, the element of adventure and good times in the saddle are often the key ride objective rather than ‘split-second race performance’.



eONE FORTY – Any Trail Any Place

RIDER PROFILE: The versatile rider

Moving in a slightly different direction from it’s longer travel stable mates is the new all-aluminium eONE-FORTY. Based on the same main frame but with a rear pivot (rather than a flex pivot) rear end, the eONE-FORTY oozes versatility being perfectly at home in less technically demanding terrain.



The eONE SIXTY

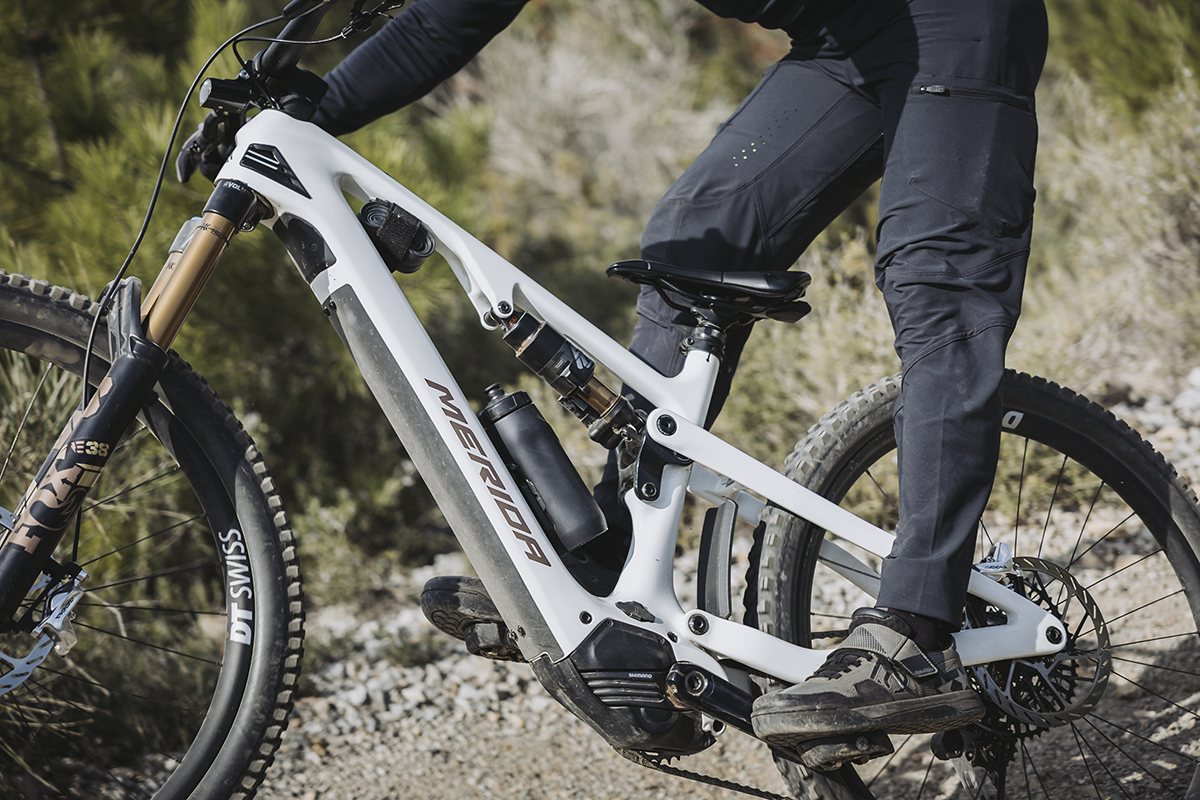

e160 CF – Low weight, uncompromised handling and maximum power.

Full power assistance and range at mid-support weight. The new carbon-framed eONE-SIXTY CF is Merida’s race and performance-orientated e-bike. Key features are an all-carbon frame with a non-removal 600 Wh internal battery. By not offering a battery cut-out for battery removal and using sophisticated carbon lay-ups, Merida could massively increase stiffness and further reduce weight compared to previous e160 models. The low overall weight, combined with the battery being positioned low in the downtube, delivers maximum handling and manoeuvrability for when every second counts.

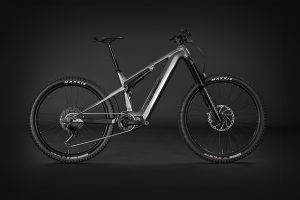

e160 Lite – Range is king. Full power, all the time.

By using aluminium for the entire frame, Merida deliver great value while maintaining stiffness and durability even with the larger battery cut-out needed for the removable battery. Similarly to its carbon counterpart, the eONE-SIXTY LITE also has increased suspension to 170 mm front and 174 mm rear travel and comes with mullet wheels setup across all sizes for maximum ‘steep terrain performance’ and agility. Via the Flip Chip, the wheel configuration can be adapted to 29er on both ends, which reduces the rear wheel travel to 160 mm but does not affect the geometry.

By combining the bigger 750 Wh battery with a 360 Wh range extender, the battery capacity increases almost 80% over the current outgoing 630 Wh version – making the eONE-SIXTY LITE the perfect bike for long and demanding e-bike outings. The new all-aluminium eONE-SIXTY LITE perfectly combines trail performance and handling with maximum battery capacity.

The all-aluminium frame features the same geometry and suspension configuration as eONE-SIXTY CF, but at its heart, it has a 750 Wh removable battery that the 360 Wh range extender can further increase meaning the only limits on your adventures are how many maps you can carry.



Key New Features of the e160 CF and e160 Lite

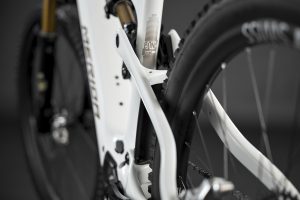

E-BIKE-SPECIFIC FAST KINEMATIC SUSPENSION

• Flexstay design with completely symmetric seat stays
• Size-specific suspension kinematics and progression, which allow the usage of coil shocks if desired

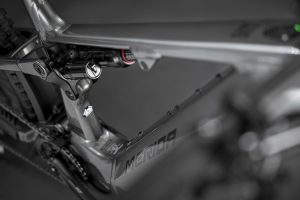

• Offset shock to provide clearance for the range extender battery



PROGRESSIVE BUT BALANCED E-BIKE-SPECIFIC GEOMETRY

• Steep seat angle: 78.4°
• Slack head tube angle: 64.4°
• Long reach for stability, short chainstays to keep the bike agile, and a steep seat angle so that the front end is planted when climbing, yet the top tube doesn’t feel too long while pedalling on the flat

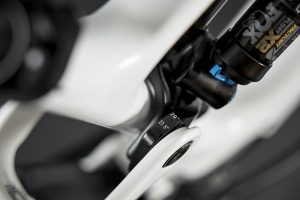

• Easy switch between 29” and mixed 29/27.5” ‘mullet’ setup wheel thanks to a flip chip in the rocker



AGILOMETER – THE RIGHT SIZE FOR ALL RIDING STYLES

• Frame grows mainly in reach and wheelbase, while seat tube and head tube remain relatively close
• Short head tube to allow flexibility in height
• Right seat height on all frame sizes – thanks to the short, but straight seat tube and the innovative travel-adjustable dropper seat post fitted to most models
• Rider can choose between frame reaches – depending on preference



Model Range

eOne-Sixty 10K £ 10,500

Lightweight carbon frame, loaded with top drawer components. SRAM XX Eagle AXS, Fox Factory level suspension, carbon DT Swiss wheelset and powerful Shimano EP801 motor.

Frame Carbon, Flip Chip, 29” x 2,6” max.

Motor Shimano Steps EP801; 85Nm

Battery Trendpower 600Wh integrated

Display Shimano SC-EM800

Fork FOX 38 Factory eMTB+; Air; 170mm; Tapered; 44mm fork offset; Max. tyre size 29” x 2.6”

Shock Fox Factory Float X2; 2 Pos Lever

Shifters Limotech RM10 dropper post lever and SRAM AXS Pod Controller

R-Mech SRAM XX Eagle Transmission AXS

Chainset SRAM XX Eagle Transmission E-MTB for Steps; 34 tooth chainset with Shimano FC-EM900 165mm length crank all sizes; hollow with MRP 1x chainguide

Cassette SRAM XX Eagle Transmission ; 10-52; 12 speed

Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; length: 40mm all sizes; Supernova mount

Handle Bar Merida Expert eTR; 780mm wide; 20mm rise

Seat Post Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

Wheels DT Swiss Spline HXC1501 spline 30 boost; carbon; Tubeless ready (tubeless tape and valves included)

F-Tyre Maxxis Assegai; 29” x 2.5”; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

R-Tyre Maxxis DHR II; 27.5” x 2.6”; Kevlar bead, folding; 3C EXO+ TR

Brakes SRAM Code Ultimate Stealth;

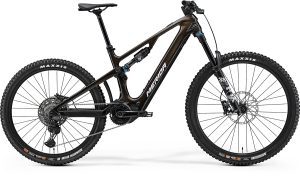

eOne-Sixty 7000 – £7000

Lightweight carbon frame, Shimano XT 4-piston hydraulic brakes, Fox Performance suspension, Shimano XT hubs, and powerful Shimano EP801 motor.

Frame Carbon, Flip Chip, 29” x 2,6” max.

Motor Shimano Steps EP801; 85Nm

Battery Trendpower 600Wh integrated

Display Shimano SC-EM800

Fork FOX 38 Performance eMTB+; Air; 170mm; Tapered; 44mm fork offset; Max. tyre size 29” x 2.6”

Shock FOX Float X Performance; 2 Pos Lever

Shifters Shimano SL -MT500-L dropper post lever and Shimano XT M8130 11 speed

R-Mech Shimano XT RDM8130 LinkGlide 11 speed

Chainset FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide

Cassette Shimano LG700; 10-50 teeth; 11 speed

Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; length: 40mm all sizes; Supernova mount

Handle Bar Merida Expert eTR; 780mm wide; 20mm rise

Seat Post Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

Saddle PROXIM W400 T2.0; V-mount adapter; Merida Multitool with saddlebox

Hubs Shimano XT; 110 x 15mm; 148 x 12mm; 32 spokes; Centerlock

Rims Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29”; rear 27.5”

F-Tyre Maxxis Assegai; 29” x 2.5”; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

R-Tyre Maxxis DHR II; 27.5” x 2.6”; Kevlar bead, folding; 3C EXO+ TR

Brakes Shimano XT; 4 piston hydraulic disc brake with Shimano RT64; 220mm/200mm RTEM600 rotors

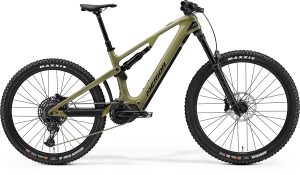

eOne-Sixty 6000 – £6000

Lightweight carbon frame, SRAM DB8 4-piston hydraulic brakes, Rock Shox Domain fork and Rock Shox Super Deluxe Select shock, and powerful Shimano EP801 motor.

Frame Carbon, Flip Chip, 29” x 2,6” max.

Motor Shimano Steps EP801; 85Nm

Battery Trendpower 600Wh integrated

Display Shimano SC-EM800

Fork Rock Shox Domain Gold RC E-MTB; Air; 170mm; Tapered; 44mm fork offset; Max. tyre size 29” x 3.0”

Shock Rock Shox Super Deluxe Select

Shifters Limotech RM10 dropper post lever and SRAM NX Eagle 12 speed

R-Mech SRAM NX Eagle

Chainset FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide

Cassette SRAM PG-1210 Eagle; 10-50 teeth; 12 speed

Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; length: 40mm all sizes; Supernova mount

Handle Bar Merida Expert eTR; 780mm wide; 20mm rise

Seat Post Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm – S: 150mm – M/L/XL: 200mm seat post travel

F-Hub Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt

R-Hub Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt

Rims Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29”; rear 27.5”

F-Tyre Maxxis Assegai; 29” x 2.5”; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

R-Tyre Maxxis DHR II; 27.5” x 2.6”; Kevlar bead, folding; 3C EXO+ TR

Brakes SRAM DB8; 4 piston hydraulic disc brake with SRAM CenterLine; 200mm rotors

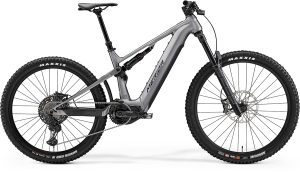

eOne-Sixty 875 – £6000

750wh powered aluminium full suspension eBike with 85Nm Shimano EP801 motor and RockShox Suspension, Shimano XT hubs, hydraulic brakes and 11 speed drivetrain.

Frame Aluminium, Flip Chip, 29” x 2,6” max

Motor Shimano Steps EP801; 85Nm

Battery Trendpower Internal Battery Gen 2; 750Wh

Display Shimano SC-EM800

Fork Rock Shox ZEB Select; Air; 170mm; Tapered; 44mm fork offset; Max. tyre size 29” x 2.8”

Shock Rock Shox Super Deluxe Select

Shifters Shimano SL -MT500-L dropper post lever and Shimano XT M8130 11 speed

R-Mech Shimano XT RDM8130 LinkGlide 11 speed

Chainset FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-E8150 165mm length crank all sizes with MRP 1x chainguide

Cassette Shimano LG700; 10-50 teeth; 11 speed

Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; length: 40mm all sizes; Supernova mount

Handle Bar Merida Expert eTR; 780mm wide; 20mm rise

Seat Post Merida Team TR II; 34.9mm diameter; in-line; all sizes 30-230mm seat post travel

Saddle PROXIM W400 STN; V-mount adapter; Merida Multitool with saddlebox

Hubs Shimano XT; 110 x 15mm / 148 x 12mm; 32 spokes; Centerlock

Rims Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29”; rear 27.5”

F-Tyre Maxxis Assegai; 29” x 2.5”; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

R-Tyre Maxxis DHR II; 27.5” x 2.6”; Kevlar bead, folding; 3C EXO+ TR

Brakes Shimano XT; 4 piston hydraulic disc brake with Shimano RT64; 220mm/RTEM600; 203mm rotor





eOne-Sixty 675 £5500

750wh powered aluminium full suspension eBike with 85Nm Shimano EP801 motor and RockShox Suspension, Shimano XT hubs, hydraulic brakes and 11 speed drivetrain.

Frame Aluminium, Flip Chip, 29” x 2,6” max..

Motor Shimano Steps EP801; 85Nm

Battery Trendpower Internal Battery Gen 2; 750Wh

Display Shimano SC-EM800

Charger Trendpower EU Charger; 4A

Fork Marzocchi Z1 eMTB; Air; 170mm; Tapered; 44mm fork offset; Max. tyre size 29” x 2.6”

Shock Marzocchi Bomber Air; platform

Shifters Shimano SL -MT500-L dropper post lever and Shimano XT M5130 10 speed

R-Mech Shimano XT RDM5130 LinkGlide 10 speed

Chainset FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide

Cassette Shimano LG400; 11-43 teeth; 10 speed

Stem Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise; length: 40mm all sizes; Supernova mount

Handle Bar Merida Expert eTR; 780mm wide; 20mm rise

Seat Post Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm – S: 150mm – M/L/XL: 200mm seat post travel

Saddle Merida Expert CC; V-mount

F-Hub Shimano TC500-B; 110 x 15mm

R-Hub 148 x 12mm; 32 spokes; Centerlock

Rims Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29”; rear 27.5”

F-Tyre Maxxis Assegai; 29” x 2.5”; Kevlar bead; folding; TR EXO+ 3C MaxxGrip

R-Tyre Maxxis DHR II; 27.5” x 2.6”; Kevlar bead, folding; 3C EXO+ TR

Brakes Shimano Deore M6120; 4 piston hydraulic disc brake with Shimano RT64; 220mm rotor/RT-EM910; 203mm rotor



Photos Courtesy of Merida Bikes
