TREK SLASH GEN 6 – PRODUCT LAUNCH

Trek Slash Gen 6



Trek Slash Gen 6

The all-new TREK Slash features 170mm of front and rear travel facilitated by a sophisticated high-pivot suspension design.



TREK’s popular Slash enduro mountain bike is back and it’s had quite a dramatic makeover! The all-new sixth-generation Slash includes a number of significant changes to its predecessor, boasting a raft of new features designed to make your ride-experience faster, more frenetic and downright rowdy than ever before. With 170mm of front and rear travel on all models, a choice of an alloy or carbon chassis and a spread of component options across the range of seven bikes there’ll be a new TREK Slash to suit you and your budget. Oh, and the headliner? It’s got to be that high-pivot suspension configuration…

We’d already seen TREK adopt a high-pivot suspension platform on the Session, their longest-travel, gravity-focused downhill race bike, with incredibly successful results. The inclusion of a very similar design on the all-new Slash enduro bike was a no-brainer; sitting just below the Session in TREK’s long-travel food chain of full-suspension mountain bikes it was almost a formality that this 6th generation Slash would boast a high-pivot design.

We got to ride the all-new Trek Slash on launch day! Check it out…



Trek Slash Gen 6 2024

TREK have spec’d the all-new Slash with a ‘Mullet’ wheel configuration – 29″ front, 27.5″ rear, although you can run a 29″ on the rear if you prefer.



The Slash’s new high-pivot suspension layout facilitates a rearward axle path, providing incredibly smooth suspension while maintaining enhanced forward momentum. How so? Well, that rearward axle pathway means your rear wheel moves away from the force of impacts rather than against them, letting you blast over mid-trail obstacles with increased control and confidence.

In the past one of the potential drawbacks of a high-pivot suspension platform was chain growth and pedal kickback. As the rear axle travelled through its suspension the chain tightened and pulled back on the cranks. Bikes like the new TREK Slash have solved this issue with extra pulleys forming part of the drivetrain; in this case you can see them positioned above and behind the front chainring. Routing the chain around idler pulleys gives it room to grow without unwanted tension, meaning you won’t get a harsh pedal kickback.


How does it work? Trek Slash Gen 6 ‘s High-Pivot Suspension



TREK Slash Gen 6

The Slash’s rearward axle path provides incredibly smooth suspension while maintaining enhanced forward momentum.



TREK have clearly spent a long time developing this new high-pivot suspension configuration so that it hits a sweet spot, providing plush rear suspension AND tangible pedalling efficiency, preventing you from wasting valuable energy thanks to those oversized pulleys which help keep pedalling super-smooth.

While your time onboard this sort of enduro bike is always going to be predominantly gravity-focused it’s nice to know that when you point the Slash uphill in a quest to get back to the top of your favourite trail as quickly as possible it promises to be easier to pedal than other high-pivot bikes. According to TREK the all-new Slash is able to scramble straight up super-techy, rocky climbs, maintaining more upward momentum thanks to that rearward axle path which prevents the rear wheel from getting hung-up on roots and rocks.

So what else is new with TREK’s sixth-generation Slash enduro mountain bike? We’ve put together some key features and fast facts below, as well as full specifications of each model in the Slash range of bikes…

TREK Slash Gen 6

The Slash’s oversized pulleys eliminate any potential for pedal kickback while helping to keep pedalling super-smooth.



What’s new about the 6th-generation TREK Slash?…

  • All-new high-pivot suspension design
  • Slacker frame geometry than its predecessor
  • Adjustable-angle headset cups
  • Rear travel increased from 160mm to 170mm
  • Adjustable suspension leverage-rate chip
  • ‘Mullet’ mixed-wheel configuration, comes as standard (29” front, 27.5” rear)
  • Size small bike features. 27.5” wheels front and rear
  • Frame protection includes Integrated Carbon Armour and a noise-reducing chain stay guard
  • All frame sizes feature increased room for longer dropper seatposts

TREK Slash Gen 6 Fast Facts

  • Size small frame features a curved top tube for enhanced clearance and rider agility.
  • Size small bike features a pair of 27.5” wheels rather than mullet configuration (27.5” rear/29” front wheel).
  • You can run two 29” wheels if you prefer, by swapping the bolt-on lower shock-mount (sold separately).
  • TREK’s iconic ‘Mino Link’ is gone. The Slash’s headtube angle is now changed via the angle-adjust headset, while the bolt-on lower shock mount allows you to adjust bottom bracket height when changing wheel sizes.
  • The headset cups allow you to get a full degree of head tube angle adjustment. All Slash’s come with neutral/zero-degree cups as standard. (Alternative angle-adjust headset cups sold separately).
  • Maximum tyre width for front and rear 27.5” and 29” wheels is 2.5”.
  • All Slash bikes come with the required parts, including sealant to set your wheels up tubeless.
  • The all-new Slash does not feature TREK’s Knock Block steering limiter.
  • The TREK Slash can run a bottle cage on the downtube; all models include a Bontrager right-side-load water bottle cage.

There’s increased room for longer dropper seatposts on all frame sizes. Dropper post insertions are:

  • SML – 290 mm
  • MED – 305 mm
  • ML – 325 mm
  • LRG – 340 mm
  • XL – 370 mm

TREK have approved the following rear shocks for the all-new Slash:

  • RockShox Super Deluxe coil
  • RockShox Super Deluxe AXS
  • RockShox Vivid Air
  • Fox Live Valve NEO
  • Fox X2

Max/Min chainring sizes:

  • Min – 28T
  • Max – 34T round
  • Max – 32T oval

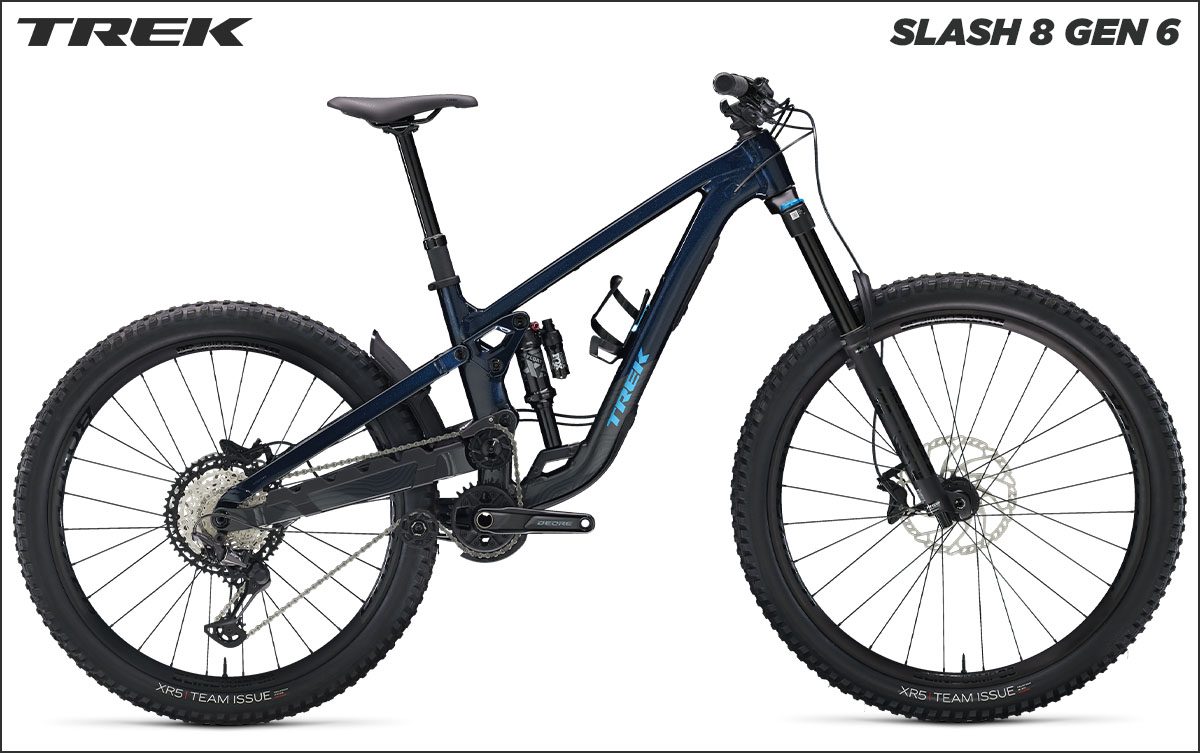

Trek Slash 8 Gen 6

Slash 8 Gen 6 RRP £4,250.00

  • Frame: Alpha Platinum Aluminium, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt-X axle, 170 mm travel
  • Shock: Fox Performance Float X, 2-position damper, 230 mm x 65 mm, 170mm travel
  • 5” Rear Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt
  • 29” Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt
  • Rear Skewer: Bontrager Switch thru-axle, removable lever
  • 5” Rear Tyre: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strips: Bontrager TLR
  • Shifter: Shimano XT M8100, 12-speed
  • Rear derailleur: Shimano XT M8100, long cage
  • Crank: Shimano Deore M6120, 30T ring, 55 mm chain line, 165 mm length
  • Bottom bracket: Shimano BB-MT501 BSA
  • Cassette: Shimano XT M8100, 10-51, 12-speed
  • Chain: Shimano SLX M7100, 12-speed
  • Saddle: Bontrager Arvada, hollow chromoly rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length
  • Dropper Seatpost (M, M/L, L, XL Frame Size): Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Stem: Bontrager Elite, 35 mm, 0-degree, 35 mm length
  • Brakes: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
  • Brake rotors: Shimano RT66, 6-bolt, 203 mm
  • Extras: Bontrager BITS Internal Frame Storage Bag



Trek Slash 9 GX AXS T-Type Gen 6

Slash 9 GX AXS T-Type Gen 6 RRP £5,175.00

  • Frame: Alpha Platinum Aluminium, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: Rockshox ZEB Select+ with DebonAir spring and Charger 3 RC2 damper, 170mm travel
  • Shock: RockShox Super Deluxe Select+, 170mm travel
  • 5” Rear Wheel: Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
  • 29” Front Wheel: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Rear Skewer: Bontrager Switch thru-axle, removable lever
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strips: Bontrager TLR
  • Shifter: SRAM GX AXS, 12-Speed
  • Rear derailleur: SRAM GX AXS, 12-Speed
  • Crank: SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55 mm chain line, 165 mm length
  • Bottom bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette: SRAM GX AXS
  • Chain: SRAM GX AXS
  • Saddle: Bontrager Verse
  • Dropper Seatpost (Small Frame Size): Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length
  • Dropper Seatpost (M, M/L, L, XL Frame Size): Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
  • Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 820 mm width
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Stem: Bontrager Elite, 35 mm, 0-degree, 35 mm length
  • Brakes: SRAM CODE Bronze 4-piston hydraulic disc
  • Brake rotors: SRAM CentreLine, 6-bolt, round edge, 200 mm
  • Extras: Bontrager BITS Internal Frame Storage Bag



Trek Slash 9.8 XT Gen 6

Slash 9.8 XT Gen 6 RRP £7,425.00

  • Frame: OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel
  • Shock: RockShox Vivid Select+, 230 mm x 65 mm, 170mm travel
  • 5” Rear Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
  • 29” Front Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Rear Skewer: Bontrager Switch thru-axle, removable lever
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strips: Bontrager TLR
  • Shifter: Shimano XT M8100, 12-speed
  • Rear derailleur: Shimano XT M8100, long cage
  • Crank: Shimano XT M8120, 30T alloy ring, Boost (55 mm chain line), 165 mm length
  • Bottom bracket: Shimano BB-MT501 BSA
  • Cassette: Shimano XT M8100, 10-51, 12-speed
  • Chain: Shimano Ultegra/XT M8100, 12-speed
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Dropper Seatpost (M, M/L, L, XL Frame Size): Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Stem: Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
  • Headset: Integrated cartridge bearing, 1-1/8″ top, 1.5″ bottom, angle adjust cup compatible
  • Brakes: Shimano XT M8120 4-piston hydraulic disc
  • Brake rotors: Shimano RT86, 6-bolt, 203mm
  • Extras: Bontrager BITS Internal Frame Storage Bag



Trek Slash 9.8 GX AXS T-Type Gen 6

Slash 9.8 GX AXS T-Type Gen 6 RRP £7,500.00

  • Frame: OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel
  • Shock: RockShox Vivid Select+, 230 mm x 65 mm, 170mm travel
  • 5” Rear Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru axle
  • 29” Front Wheel: Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Shifter: SRAM Eagle AXS POD
  • Rear derailleur : SRAM GX Eagle AXS, T-Type
  • Crank: SRAM GX Eagle, DUB MTB Wide, T-Type, 30T, 55 mm chain line, 165 mm length
  • Bottom bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette: SRAM Eagle XS-1275, T-Type,10-52, 12-speed
  • Chain: SRAM GX Eagle, T-Type, 12 speed
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Dropper Seatpost (M, M/L Frame Size): Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Dropper Seatpost (L, XL Frame Size): Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • Handlebar: Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 820 mm width
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Stem: Bontrager Line Pro, 35 mm, Knock Block, Blendr-compatible, 0-degree, 35 mm length
  • Brake: SRAM CODE Bronze 4-piston hydraulic disc
  • Brake rotor: SRAM CentreLine, 6-bolt, round edge, 200 mm
  • Extras: SRAM eTap battery pack (with charger)



Trek Slash 9.9 X0 AXS T-Type Gen 6

Slash 9.9 X0 AXS T-Type Gen 6 RRP £9,400.00

  • Frame: OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
  • Shock: RockShox Vivid Ultimate, 230 mm x 65 mm, 170mm travel
  • 5” Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle
  • 29” Front Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Shifter: SRAM Eagle AXS, wireless, 12-speed
  • Rear derailleur : SRAM X0 Eagle AXS, T-Type
  • Crank: SRAM X0 Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 165 mm length
  • Bottom bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette: SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain: SRAM X0 Eagle, T-Type, 12-speed
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Dropper Seatpost (M, M/L Frame Size): RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
  • Handlebar/Integrated Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Brakes: SRAM Code Silver 4-piston hydraulic disc
  • Brake rotor: SRAM 6-bolt, 200 mm
  • Extras: SRAM eTap battery pack (with charger)

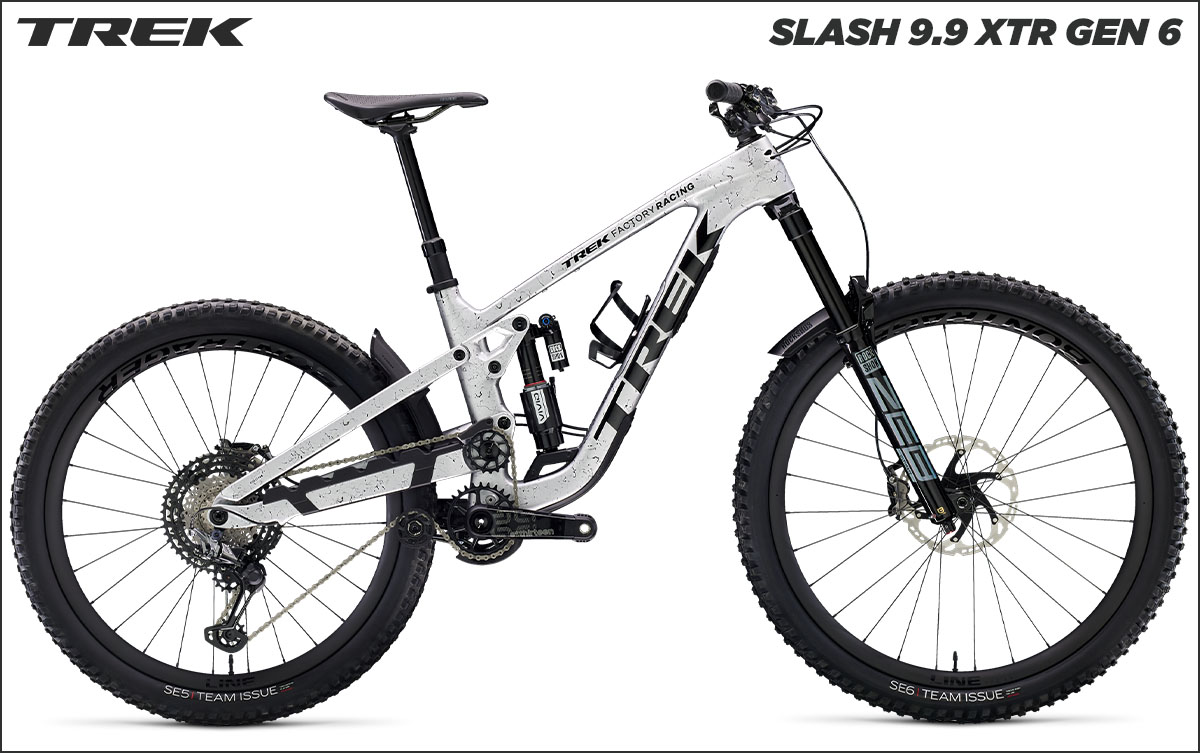

Trek Slash 9.9 XTR Gen 6

Slash 9.9 XTR Gen 6 RRP £10,8000.00

  • Frame: OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: RockShox ZEB Ultimate, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
  • Shock: RockShox Vivid Ultimate, 230 mm x 65 mm
  • 5” Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
  • 29” Front Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.50″
  • 29” Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Shifter: Shimano XTR M9100, 12-speed
  • Rear derailleur: Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog
  • Crank: E*thirteen LG1 Race Carbon, 30T, 55 mm chain line, 165 mm length
  • Bottom bracket: E*thirteen BB20-P, BSA threaded, 73 mm width
  • Cassette: Shimano XTR M9101, 10-51, 12-speed
  • Chain: Shimano Dura-Ace/XTR M9100, 12-speed
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
  • Dropper Seatpost (M, M/L Frame Size): Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
  • Dropper Seatpost (L, XL Frame Size): Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
  • Handlebar/Stem: Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Brakes: Shimano XTR M9120 4-piston hydraulic disc
  • Brake rotor: Shimano RT86, 6-bolt, 203mm



Trek Slash 9.9 XX AXS T-Type Gen 6

Slash 9.9 XX AXS T-Type Gen 6 RRP £11,750.00

  • Frame: OCLV Mountain Carbon, high main pivot, idler pulley, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, integrated frame protection, internal routing, magnesium rocker link, ISCG 05, Active Braking Pivot, UDH, 148×12 mm thru axle, 170 mm travel
  • Fork: RockShox ZEB Ultimate Flight Attendant, DebonAir spring, Charger 2.1 RCT3 AXS damper, 1.5″ tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 170 mm travel
  • Shock: RockShox Vivid Ultimate, 230 mm x 65 mm, 170mm travel
  • 5” Rear Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD driver, Boost148, 12 mm thru-axle
  • 29” Front Wheel: Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru-axle
  • 5” Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 27.5×2.50″
  • 29” Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29×2.50″
  • Tyre Sealant: Bontrager TLR sealant, 180 ml/6 oz
  • Rim strip: Bontrager TLR
  • Shifter: SRAM Eagle AXS, wireless, 12-speed
  • Rear derailleur: SRAM XX Eagle AXS, T-Type
  • Crank: SRAM XX Eagle, T-Type, DUB, 34T ring, 55 mm chain line, 165 mm length
  • Bottom bracket: SRAM DUB MTB Wide, 73 m, BSA threaded
  • Cassette: SRAM Eagle XS-1297, T-Type, 10-52, 12-speed
  • Chain: SRAM XX Eagle, T-Type, 12-speed
  • Saddle: Bontrager Arvada, austenite rails, 138 mm width
  • Dropper Seatpost (Small Frame Size): RockShox Reverb AXS, 100 mm travel, wireless, 34.9 mm, 340 mm length
  • Dropper Seatpost (M, M/L Frame Size): RockShox Reverb AXS, 170 mm travel, wireless, 34.9 mm, 480 mm length
  • Grips: Bontrager XR Trail Pro, alloy lock-on
  • Brakes: SRAM Code Ultimate 4-piston hydraulic disc
  • Brake rotor: SRAM 6-bolt, 200 mm
  • Extras: SRAM eTap battery pack (with charger)



Written by Johnny Dodgin

Photos – TREK’s own



Have you seen our Fast Bike feature? Missed some of our best bikes? You can now see all of our featured bikes in one place over on Pinterest where you’ll find links to each of our Fast Bike Feature Blogs too!

Click the link below and search our archive…

Fast Bike Friday at Wheelbase
