YETI SB 160 – PRODUCT LAUNCH!



Launched today! This is the all-new SB 160 from YETI, a brand that makes of some of the most desirable bikes out there, with a rich racing, design and production heritage that goes way back to the very dawn of mountain biking. The guys from YETI UK dropped into Wheelbase HQ a few days prior to launch to run through the specs of this 160mm travel Enduro bike which has already been spotted being piloted by Richie Rude and his YETI teammates at some rounds of this year’s Enduro World Series.

The YETI SB 160 recently arrived at Wheelbase HQ so that we could check it out before launch.



There are two new SB 160 models available –  the SB 160 T1 features YETI’s premium TURQ Series carbon fibre frame and Fox Factory shocks retailing for £8,999.00 and the SB 160 C2 featuring YETI’s C/Series carbon fibre frame with Fox Performance shocks retailing at £7,299.00.

Eagle-eyed race fans will have spotted Richie Rude on the SB 160 at some of the EWS rounds in 2022.



YETI SB 160 Frame Highlights

• NEW Switch Infinity assembly on T-Series
• NEW Threaded bottom bracket
• NEW High-clearance downtube
• NEW Dual-density downtube protection
• Universal Derailleur Hanger (UDH)
• Secure, fully enclosed internal cable management
• Compatible with long dropper posts
• 100% standard sealed Enduro Max bearings
• Floating collet axle pivot design
• Compact-wishbone shock extender
• Boost spacing
• Sizes S-XXL

The Headliners

• Improved stiffness
• Increased durability and impact protection
• More BB/Down tube clearance creates a frame that is less prone to impact
• Dual density down tube protector.
• Rubber base for extended coverage and impact cushioning
• Cap provides additional impact protection from larger/harder objects
• New threaded BB
• As seen on the 160e no bearings are pressed into the frame, they are all pressed into metal linkage parts
• Internally routed cables with internal guides to reduce rattle and make routing easy
• Integrated headset
• UDH and 55mm chain line
• Tyre Clearance for a 2.6” tyre
• Clamped housing and hoses as seen on the ARC to further reduce rattle and paint rub
• ISCG05 tabs integrated into BB insert
• 34t Max Chainring
• Still fits a water bottle

Geometry

• Size specific chain stay lengths
• New XXL 29” frame sizes
• Slacker headtube
• Shorter Seat Tube
• Shorter headtube length on smaller sizes
• Reach and seat tube angle increase with travel
• Actual seat tube angle increase with frame size

The all-new YETI SB 160 frame boasts some nice stats.



Yeti SB 160 Geometry



The YETI engineers have refined the geometry to deliver another leap forward when it comes to how a bike like this can handle.

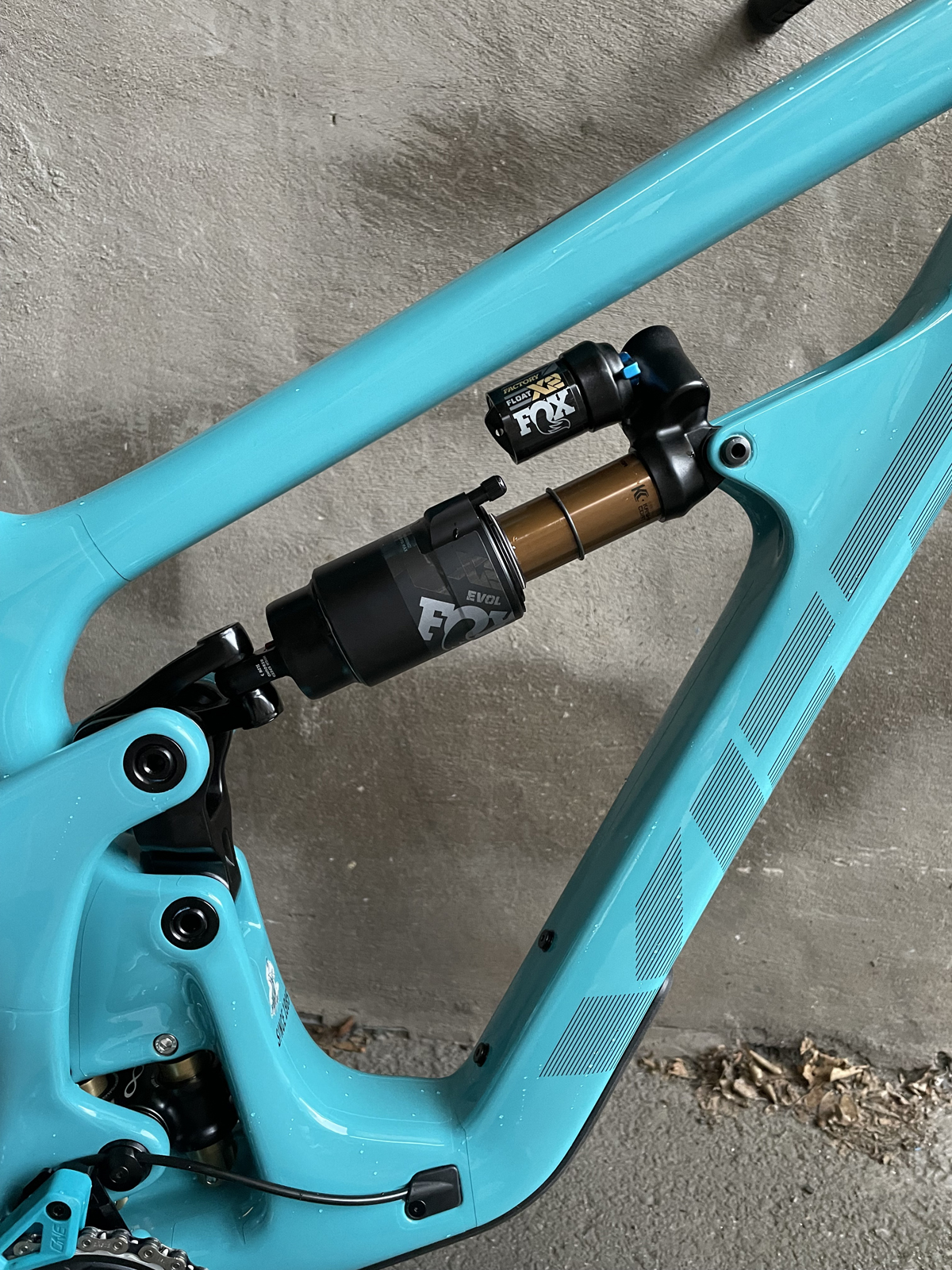

YETI’s two-piece wishbone shock extender ensures optimal clamping, shock compatibility and ease of shock removal for longer travel applications.



This clever configuration optimises leverage rates while pushing the shock forward in the frame.

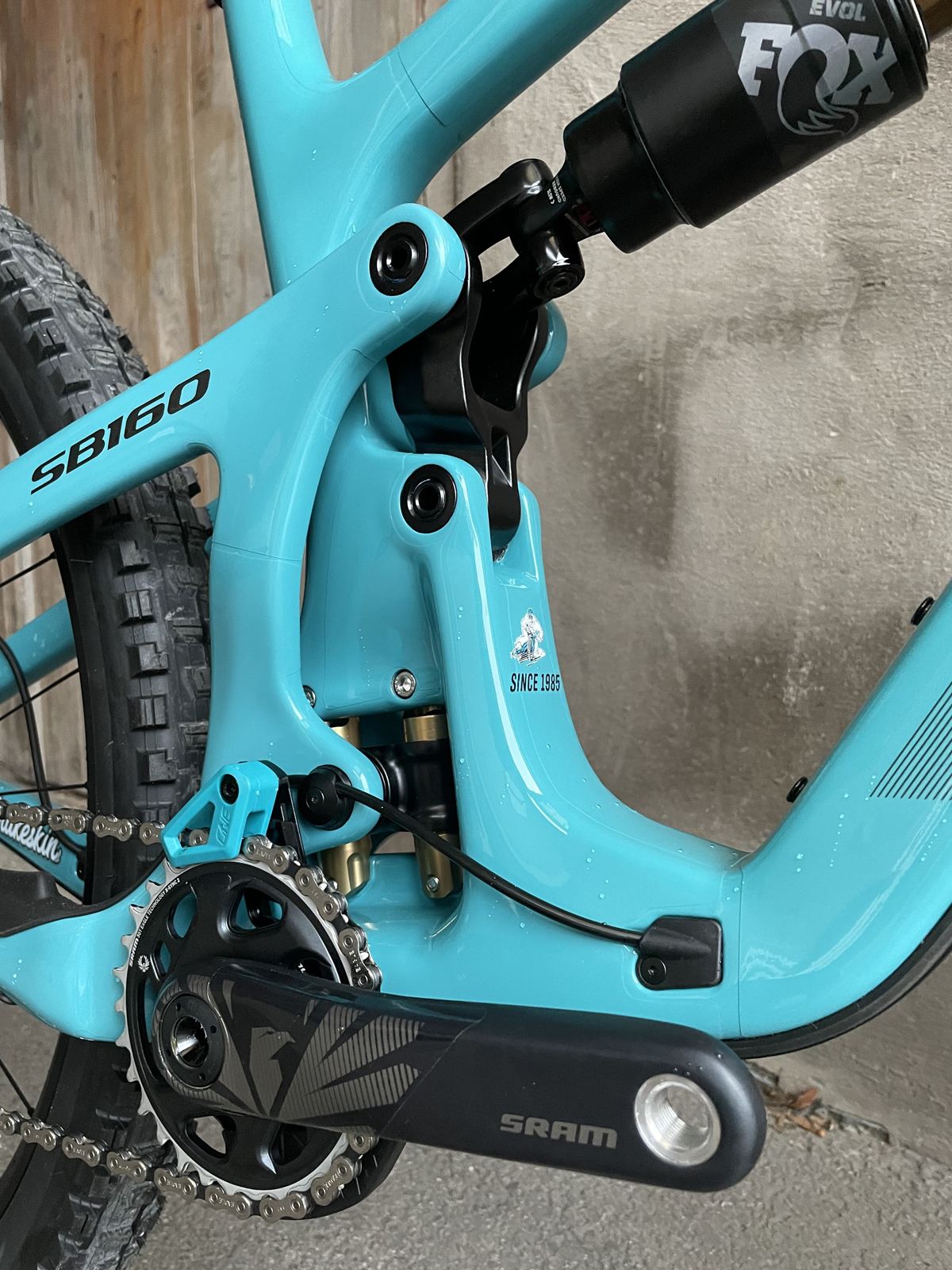

The T-Series SB 160 boasts YETI’s new Switch Infinity system with improved bearings and hardware.

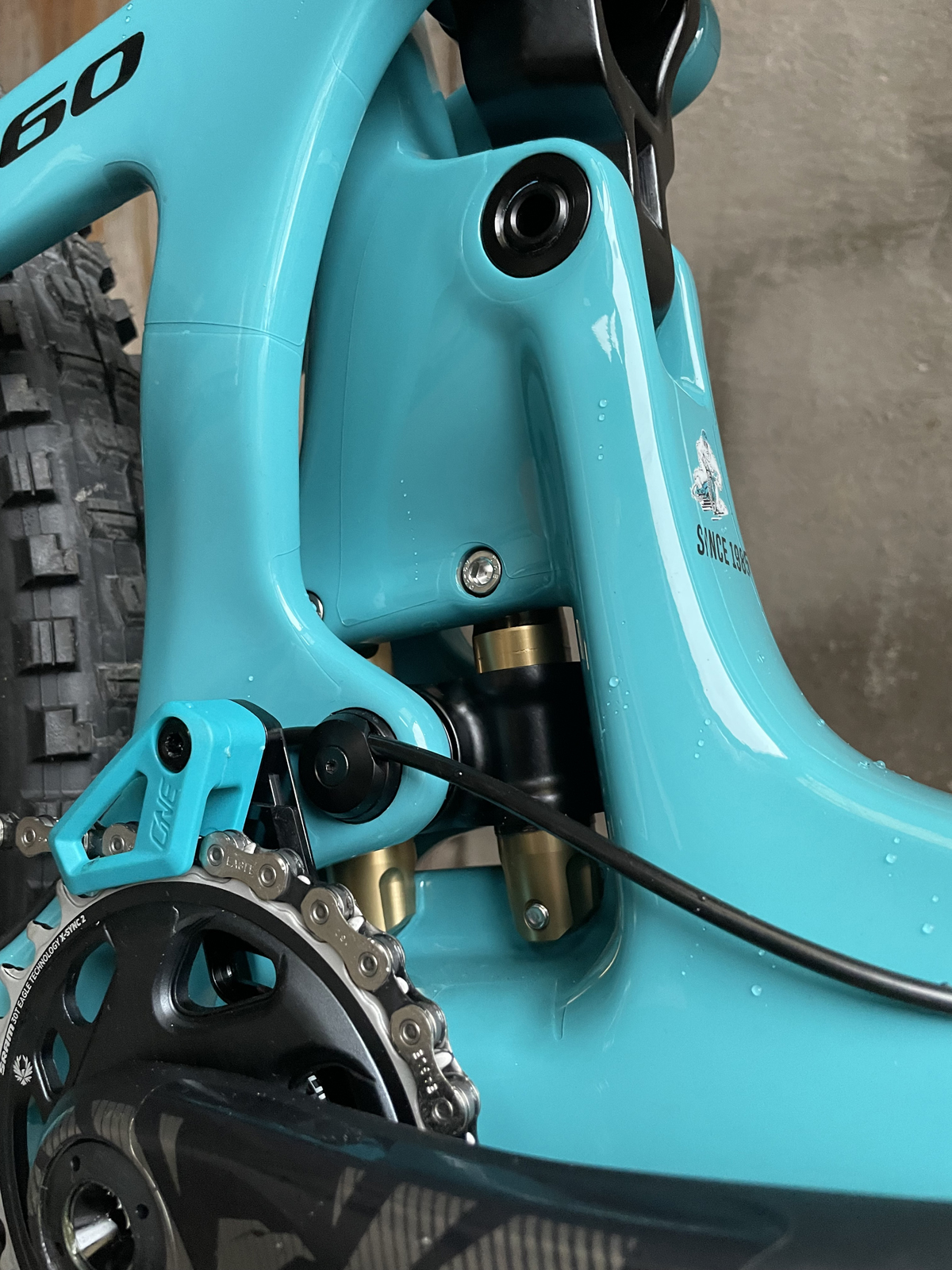

All bearings are pressed into the linkage assembly rather than the swingarm or front triangle for increased performance and durability.

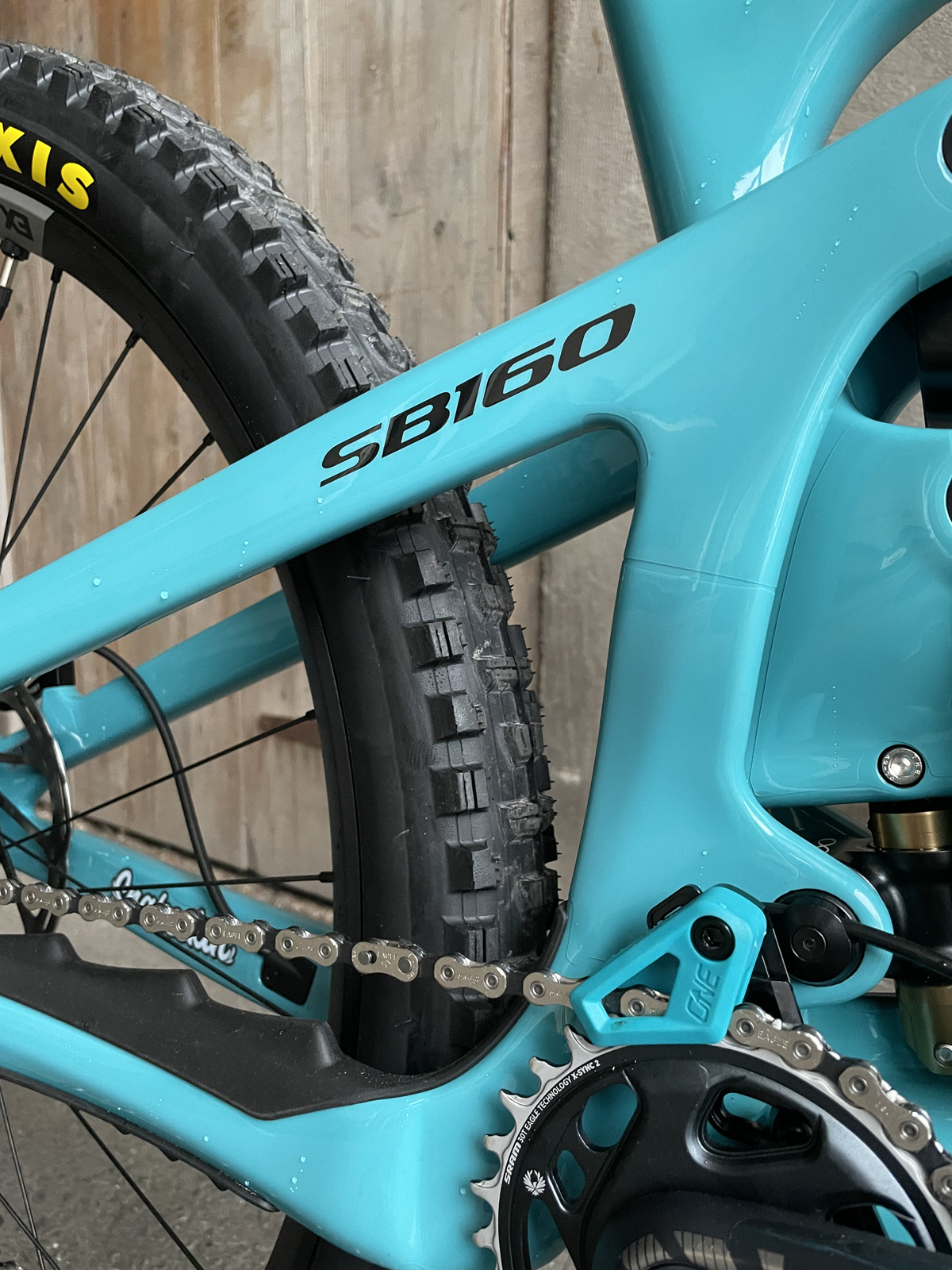

The SB 160 can handle a 2.6″ wide tyre with ample clearance.

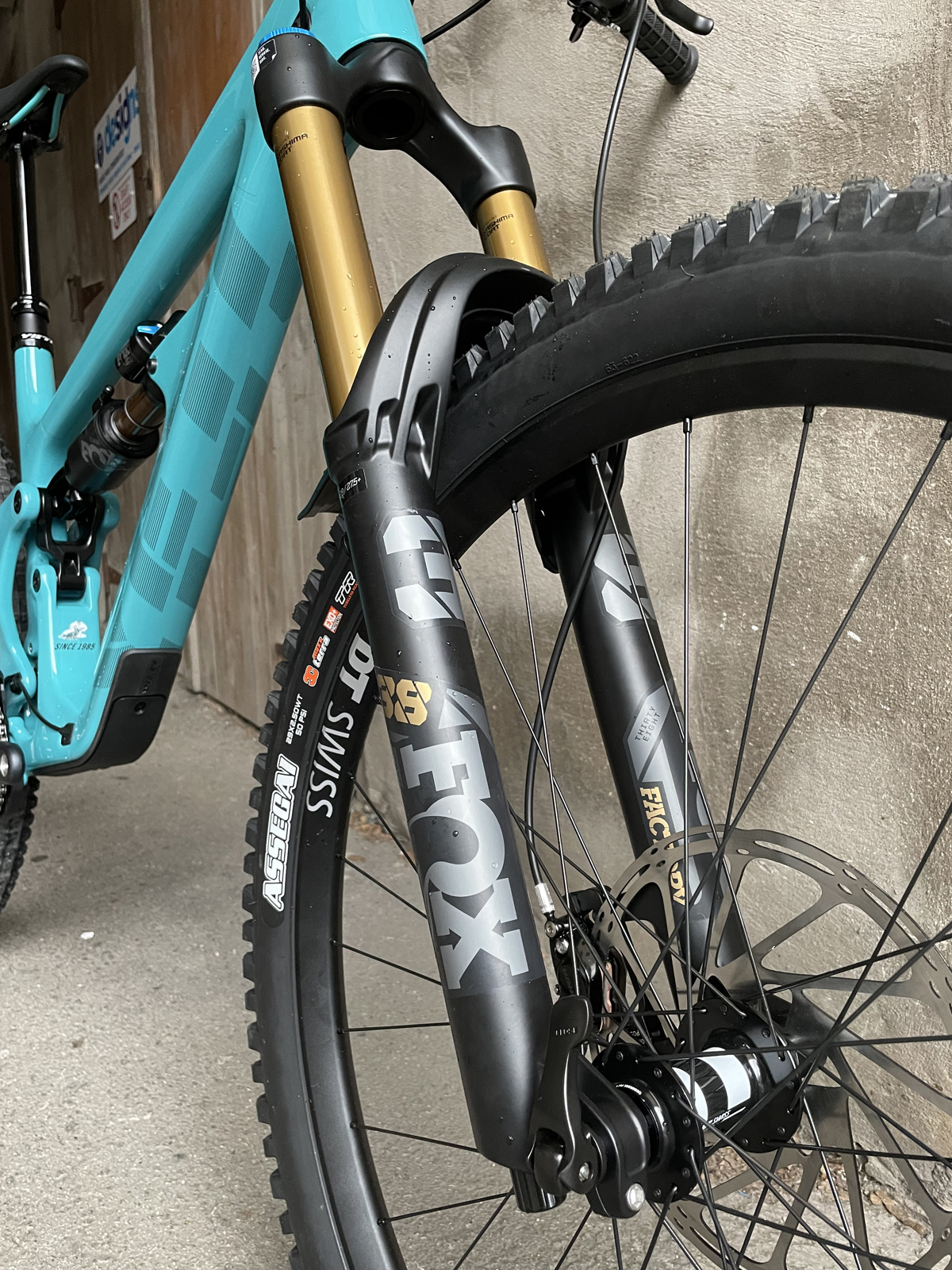

The YETI SB 160 T1 features a Fox Factory shock and forks with Kashima coating.



That YETI head badge is iconic within the world of mountain biking.

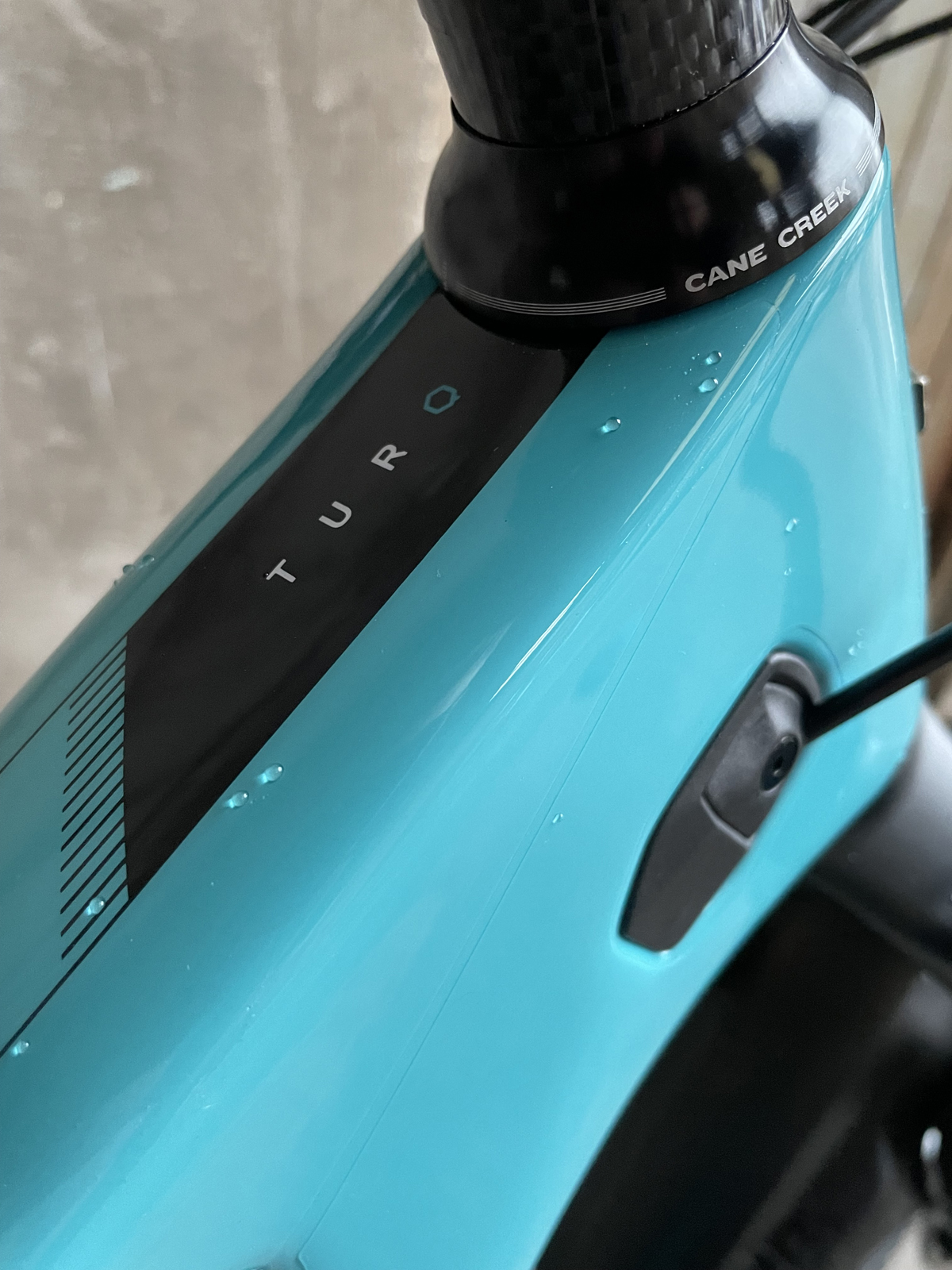

The SB 160 T1 is constructed from YETI’s premium TURQ Series carbon fibre.



Already proven on the international EWS racing circuit the YETI SB 160 is one seriously capable Enduro bike, built ready to handle anything you throw at it.

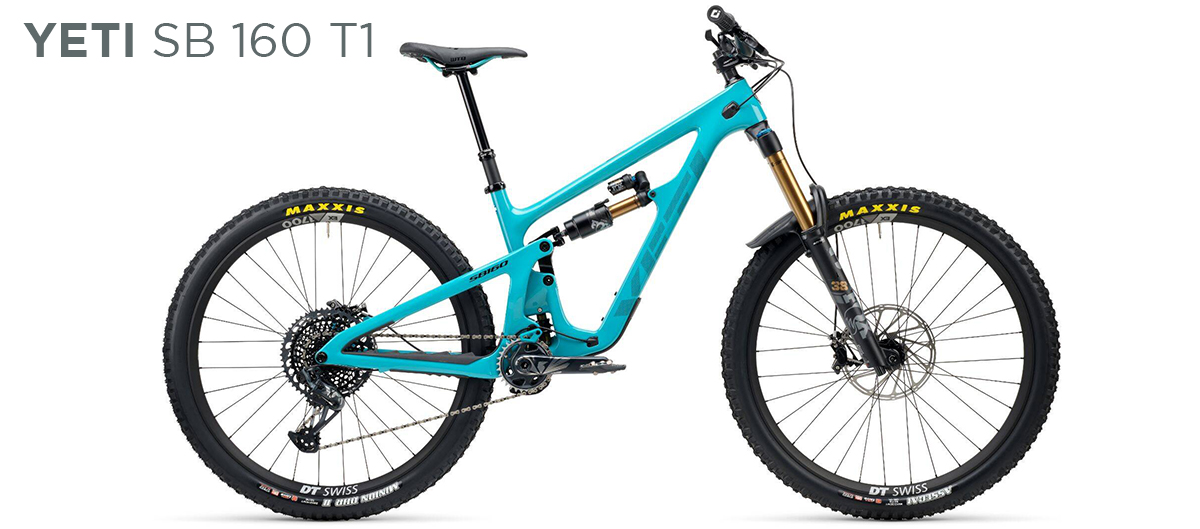

YETI SB 160 T1 RRP £8,999.00

Full Specification:

• Frame: YETI SB 160 TURQ
• Sizes: S – XXL
• Rear Shock: Fox Factory Float X2
• Fork: Fox Factory 38 Grip 2/170mm
• Headset: Cane Creek 40 Integrated
• BB: SRAM Dub BSA 73
• Stem: Burgtec Enduro MK3 35x50MM
• Handlebar: YETI Carbon 35x800MM
• Grips: ODI Elite Pro
• Seatpost: Fox Transfer 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
• Saddle: Silverado Custom
• Brakes: SRAM Code RSC
• Front Rotor: SRAM Centreline 220
• Rear Rotor: SRAM Centreline 200
• Wheelset: DT Swiss Custom EX 1700 30MM
• Front Tyre: Maxxis Assegai 2.5 EXO+
• Rear Tyre: Maxxis Minion DHR II 2.4 EXO+
• Crankset: SRAM X1 Eagle 30T 170MM
• Chain: SRAM GX Eagle
• Rear Derailleur: SRAM X01 Eagle
• Shift Lever: SRAM GX Eagle
• Cassette: SRAM GX Eagle 1275 10-52



YETI SB 160 C2 RRP £7,299.00

Full Specification:

• Frame: YETI SB 160 C/SERIES
• Sizes: S – XXL
• Rear Shock: Fox Performance Float X
• Fork: Fox Performance 38/170MM
• Headset: Cane Creek 40 Integrated
• BB: Shimano XT BB 73
• Stem: Burgtec Enduro MK3 35x50MM
• Handlebar: Burgtec Ride Wide Alloy Enduro 35X800MM 35MM Rise
• Grips: ODI Elite Pro
• Seatpost: ONEUP Dropper Post 31.6MM / SM: 150MM, MD: 180MM, LG-XXL: 210MM
• Saddle: Silverado Custom
• Brakes: Shimano SLX 4 Piston
• Front Rotor: Shimano 220Rear Rotor: Shimano 203
• Wheelset: DT Swiss E1900 30MM
• Front Tyre: Maxxis Assegai 2.5 EXO+
• Rear Tyre: Maxxis Minion DHR II 2.4 EXO+
• Crankset: Shimano SLX 30T 170MM
• Chain: Shimano SLX
• Rear Derailleur: Shimano SLX
• Shift Lever: Shimano XT
• Cassette: Shimano SLX



Written by Johnny Dodgin

Photos by Johnny Dodgin
