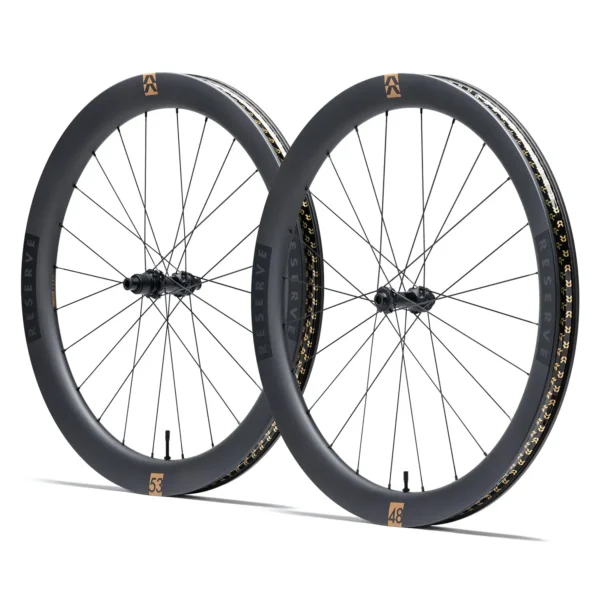

Reserve 48/53 GR Carbon Gravel Wheelset
The Reserve 48/53 GR is a fast, stable and lightweight carbon wheelset built for gravel racing. Using Turbulent Aero technology and a wide hollow-hook rim, it delivers maximum speed, control and flat protection across demanding courses. The mixed-depth design improves handling in crosswinds while boosting aerodynamic efficiency for all-day racing.
The 30 mm internal width supports modern gravel tyres, creating a wider contact patch for more grip and stability. The 44 mm external width smooths airflow for improved aero performance. The hollow-hook construction keeps weight low while maintaining strength and pinch-flat protection, backed by Reserve’s lifetime warranty.
Key Features
-
Turbulent Aero design for speed and stability
-
48 mm front and 53 mm rear rim depth
-
30 mm internal width for modern gravel tyres
-
44 mm external width for improved aerodynamics
-
Lightweight hollow-hook rim construction
-
Asymmetric rear rim with 2.8 mm offset
-
Centerlock disc mounting
-
Freehub options: XDR and HG-EV
-
Lifetime warranty
Performance
The mixed-depth rims balance handling and speed. The shallower 48 mm front rim improves control in crosswinds, while the deeper 53 mm rear rim enhances aerodynamic efficiency without affecting steering. The wide rim profile increases grip, stability and confidence on loose terrain.
Rim and Wheelset Weight
-
Wheelset: 1433 g (DT 180)
-
Rims: 445 g (48 GR), 465 g (53 GR)
Specs
-
Rim depth: 48 mm front, 53 mm rear
-
ERD: 545 mm (48 GR), 535 mm (53 GR)
-
Internal width: 30 mm
-
External width: 44 mm
-
Bead width: 4.5 mm
-
Spoke count: 24
-
Hub spacing: 12×100 mm front, 12×142 mm rear
-
Recommended tyre width: 40 to 57 mm
Design Details

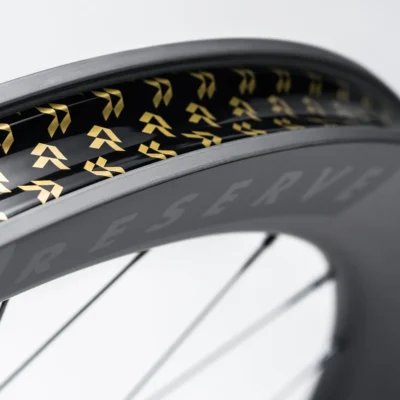

The 30 mm internal width prevents tyres from lightbulbing, keeping the sidewalls supported for better grip and control. The hollow-hook design removes excess material inside the rim, reducing weight while maintaining strength and pinch-flat protection.
In the Box
-
Complete wheelset
-
XDR freehub
-
32 mm Reserve rim tape (installed)
-
70 mm Fillmore tubeless valve
-
90 mm Fillmore tubeless valve
-
White Reserve rim decals
-
User manual
Who It’s For
Gravel racers who want maximum speed, stability and flat protection from a lightweight, wide-profile carbon wheelset.
