Orbea Denna H40 2026

£3,699.00

Orbea Denna H40 2026 Gravel E-BikeThe Orbea Denna H40 2026 Gravel isn’t just an e-bike, it’s designed for riders who want to push beyond limits and embrace adventure across all terrains. Blending lightweight frame engineering with natural-feeling electric assistance, this gravel e-bike makes steep climbs, long distances, and loose surfaces — Read More

GTIN (UPC): 26ORBEADENNAH40 Categories: , ,

Spread the cost from £92.48 monthly*

Buying Guides

Description

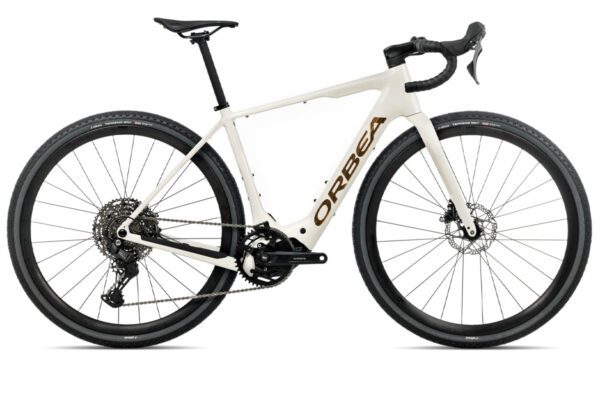

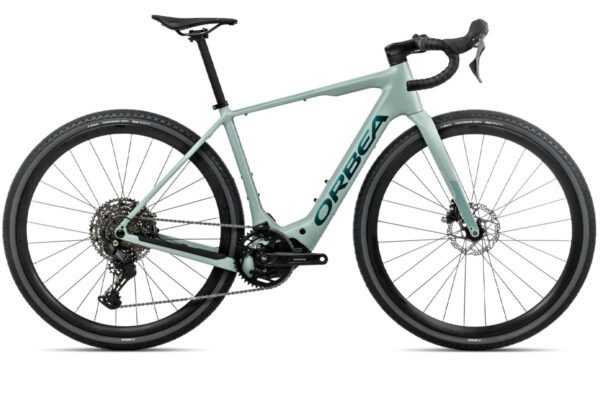

Orbea Denna H40 2026 Gravel E-Bike

The Orbea Denna H40 2026 Gravel isn’t just an e-bike, it’s designed for riders who want to push beyond limits and embrace adventure across all terrains. Blending lightweight frame engineering with natural-feeling electric assistance, this gravel e-bike makes steep climbs, long distances, and loose surfaces easier, while keeping ride comfort and stability at the forefront.

Built around a lightweight aluminium frame, the Orbea Denna H40 maintains stiffness for efficient power transfer while staying nimble and responsive. A low bottom bracket and refined chainstays enhance stability and control on mixed terrain, while tyre clearance up to 50mm offers impressive grip and comfort no matter the trail conditions. Weighing around 16kg in alloy form, the Denna H40 strikes an excellent balance between performance and portability.

At its heart is the Shimano EP600 mid-drive motor with RS Gen2 RC tuning. Delivering up to 85Nm of torque, it offers two custom gravel modes for smooth or loose terrain, both of which can be further fine-tuned via the Shimano E-Tube app. The compact 420Wh internal battery allows up to 3,500m of climbing in Eco mode, with the option to extend range via a 210Wh Range Extender cleverly disguised as a water bottle.

Shimano CUES 11-speed gearing ensures crisp and quiet shifting across an 11–50T cassette, making steep climbs and fast sprints feel effortless. Braking confidence comes from Shimano RS405 hydraulic disc brakes, delivering smooth, controlled stopping in all weather conditions. Vittoria Terreno Dry Gravel G2.0 TLR 700x45c tyres provide the perfect balance of speed, traction, and resilience for gravel adventures.

The Orbea Denna H40 2026 is more than just a gravel e-bike – it’s a machine built for bold journeys. With powerful assistance, versatile design, and comfort across every mile, this e-bike is the perfect companion for riders who want to explore further, faster, and with total confidence.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

Orbea Denna, Thru Axle 12mm x 142mm rear, thread M12xP1, internal cable routing.
Fork

Orbea Denna OMR ICR, full carbon, 1-1/8" – 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Head Set

FSA 1-1/2" Integrated Aluminium Cup
Handle Bars

OC Gravel GR31, Reach 70, Drop 110
Brakes

Shimano RS405 Hydraulic Disc
Rear Derailleur

Shimano Cues U6000 GS Shadow
Rear Hub

Orbea Thru Axle 12x142mm M12xP1 Solid inner threaded
Front Hub

Orbea Thru Axle 12x100mm M12xP1 Hollow
Shift Levers

Shimano U6030
Cassette

Shimano CS-LG400 11-50t 11-Speed
Chainset

Shimano Steps EM600
Wheels

Alloy, Tubeless, 700c, 21c
Front Tyre

Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Rear Tyre

Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Saddle

Selle San Marco Shortfit 2.0 Start Up Off Road
Seat Post

SP 0.2 Carbon, 27.2mm, Setback 0
Battery

Orbea Internal 420Wh
Motor

Shimano EP600
Wheel Size

700c
Discipline

Gravel
Electric

Yes
