Description

Amflow PX Carbon | Avinox M2S Motor

Key Features

• Ultra-light carbon frame with total bike weight of 20.6 kg
• Avinox M2S Drive Unit with 130 Nm nominal torque and 150 Nm peak
• 700 Wh Avinox Integrated Battery with super-fast 12A charging
• 40 adjustable geometry configurations for precision tuning
• Compatible with 27.5 inch and 29 inch rear wheels
• 2 inch OLED Avinox Control Display with offline navigation
• Wireless Avinox controllers on both sides
• FOX 36 Performance 160 mm fork and FOX Float X Performance rear shock
• SRAM S1000 Eagle Transmission drivetrain
• Magura Gustav Pro 4 piston brakes with 203 mm rotors
• Mullet wheel setup with Schwalbe Gravity Pro tyres
• Premium Amflow cockpit, dropper system and accessories included

Performance

The Amflow PX Carbon delivers full-power capability in a lightweight, highly responsive chassis. At the heart of the bike is the Avinox M2S Drive Unit, weighing just 2.59 kg yet producing 130 Nm nominal torque and 150 Nm peak torque with 1500 W peak power. Power delivery is smooth and natural thanks to high-precision sensors and intelligent algorithms that adjust assistance in real time. Auto Mode adapts support based on terrain and rider position, while Boost Mode unleashes maximum torque instantly for steep climbs and technical bursts.

The 700 Wh integrated battery provides long-range capability and supports super-fast 12A charging, allowing riders to top up quickly between rides. Combined with the lightweight frame and low-drag motor design, the PX Carbon climbs efficiently and descends with confidence.

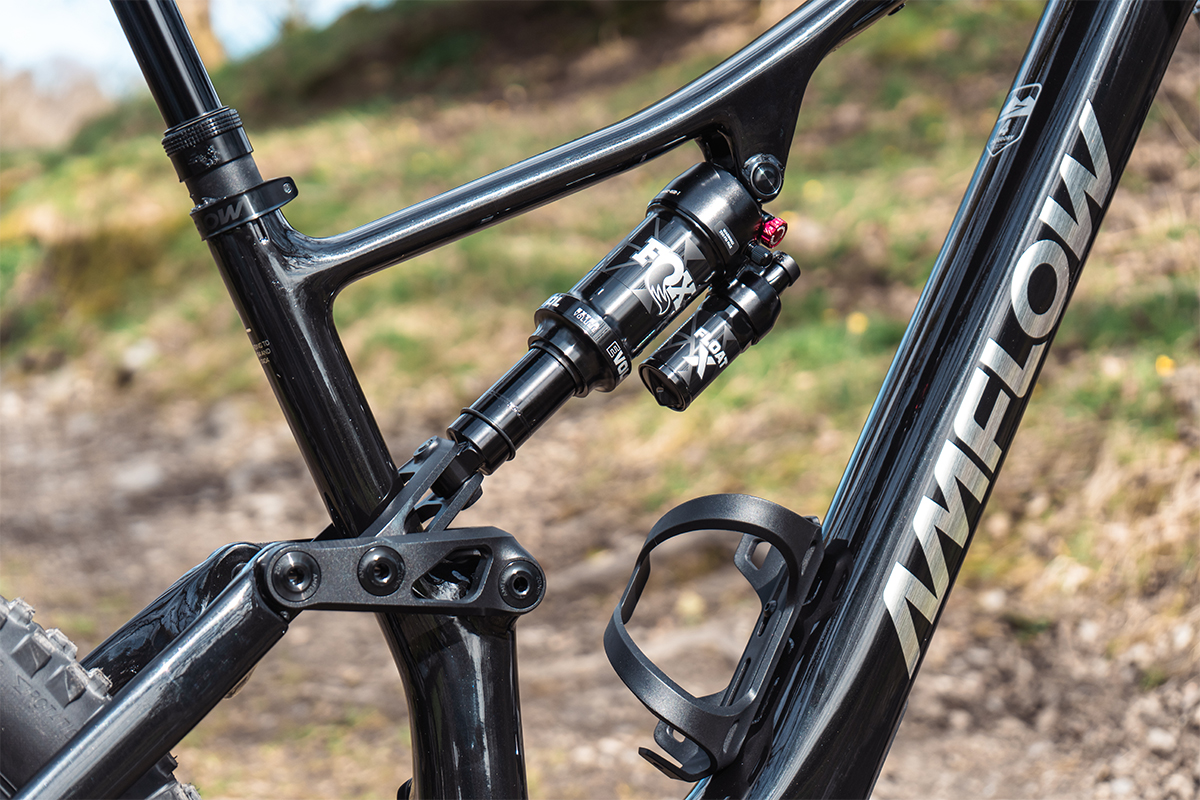

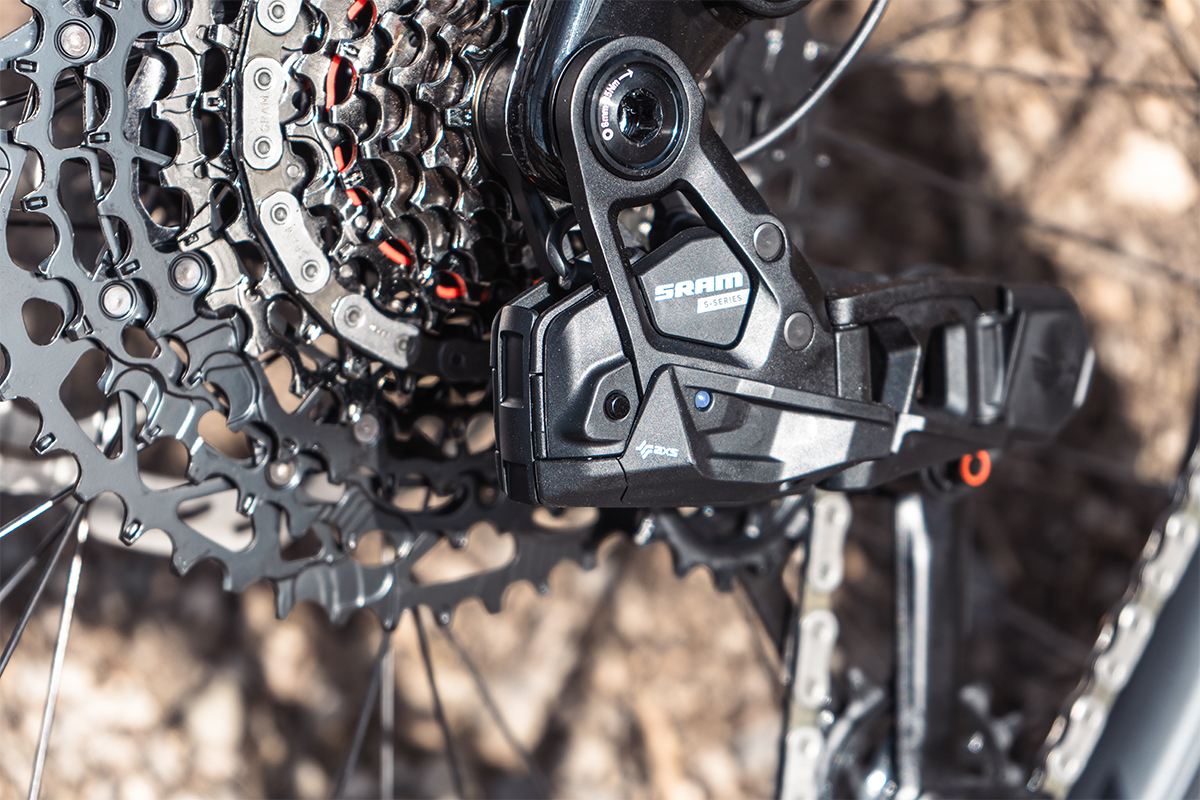

Suspension performance is handled by FOX, with a 160 mm FOX 36 Performance fork and a FOX Float X Performance rear shock tuned specifically for the PX platform. The SRAM S1000 Eagle Transmission drivetrain ensures crisp, reliable shifting under load, powered by the Avinox electronic system.

Comfort

The PX Carbon is engineered for stability, control and long-ride comfort. The progressive geometry can be fine-tuned through 40 possible configurations, allowing riders to adjust head angle, bottom bracket height and chainstay length to match terrain and riding style. The Amflow Enduro cockpit, lock-on grips and adjustable-travel dropper post provide a secure and ergonomic riding position.

The quiet operation of the M2S Drive Unit, running as low as 45 dBA, enhances the riding experience by reducing mechanical noise and allowing the rider to focus on trail feedback and flow.

Design

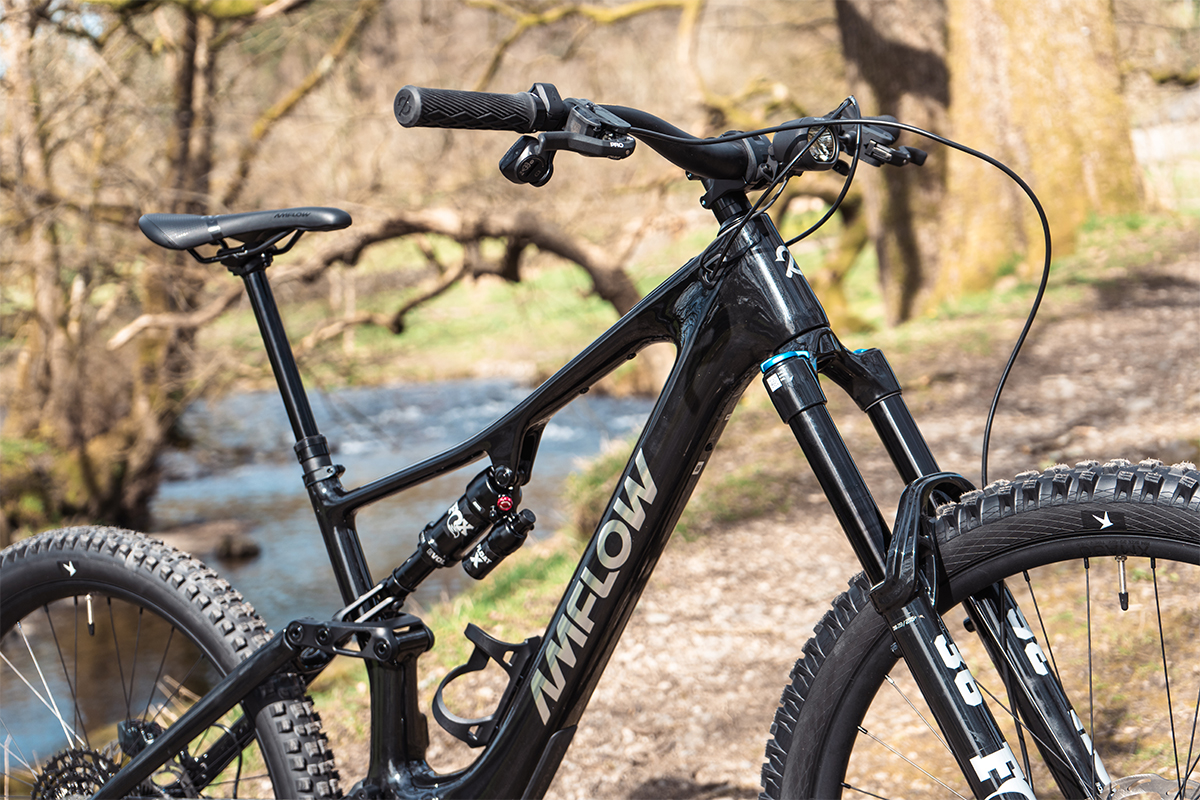

Finished in Phantom Black, the PX Carbon features a sleek, streamlined carbon frame built for strength and agility. The mullet wheel setup pairs a 29 inch front wheel for stability with a 27.5 inch rear wheel for agility and clearance. Schwalbe Gravity Pro tyres deliver grip and durability across demanding terrain.

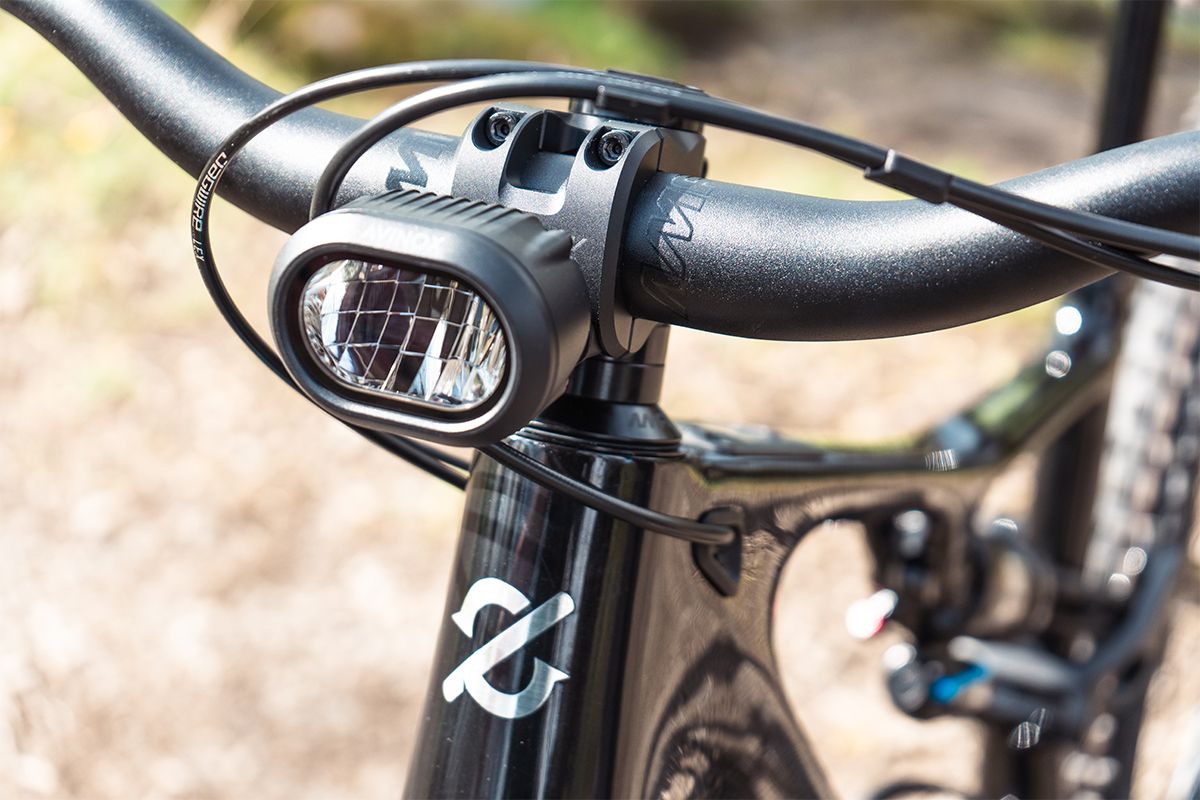

Premium components complete the build, including Magura Gustav Pro brakes, Amflow XMA-30 rims, SAPIM E-Light spokes, and a full Amflow cockpit with split stem, enduro handlebar and adjustable dropper post. Integrated front and rear lights, bottle cage, frame protection film and essential tools are included.

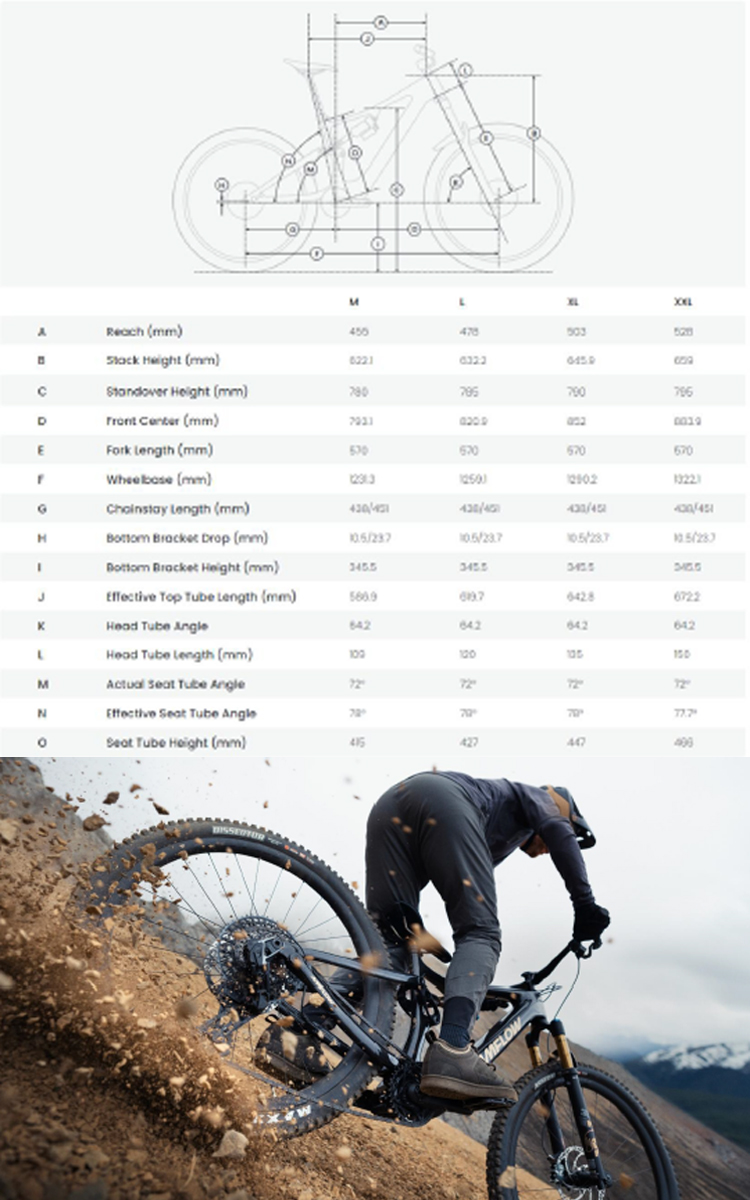

Size Guide

Dropper Post Travel
M/L Frame: 190 mm
XL Frame: 210 mm
XXL Frame: 230 mm

Adjustable travel spacers included: 0, 5, 10, 15, 20, 25 mm

Wheel Compatibility
Front: 29 inch
Rear: 27.5 inch or 29 inch

Geometry Adjustment Systems
Headset cups: 0.5 degree and 1 degree options
Chainstay flip-chip: multiple length settings
Bottom bracket height: 2 positions

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.
