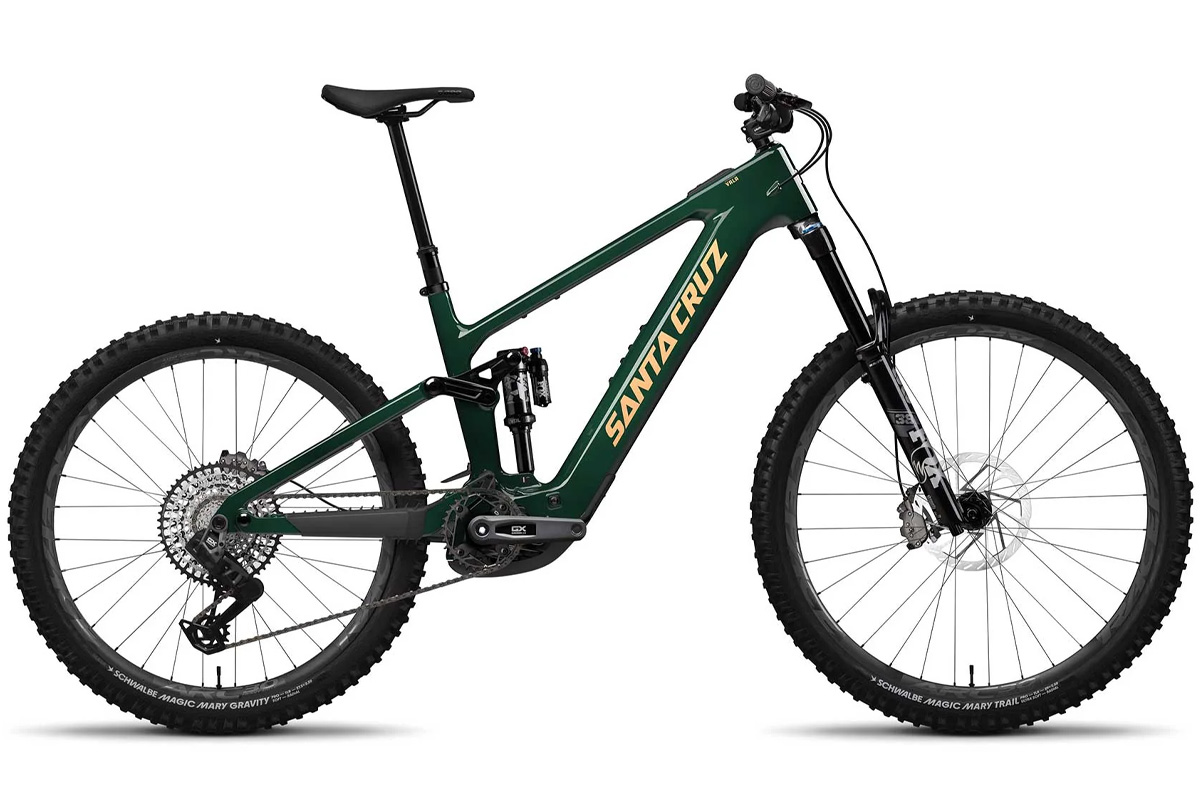

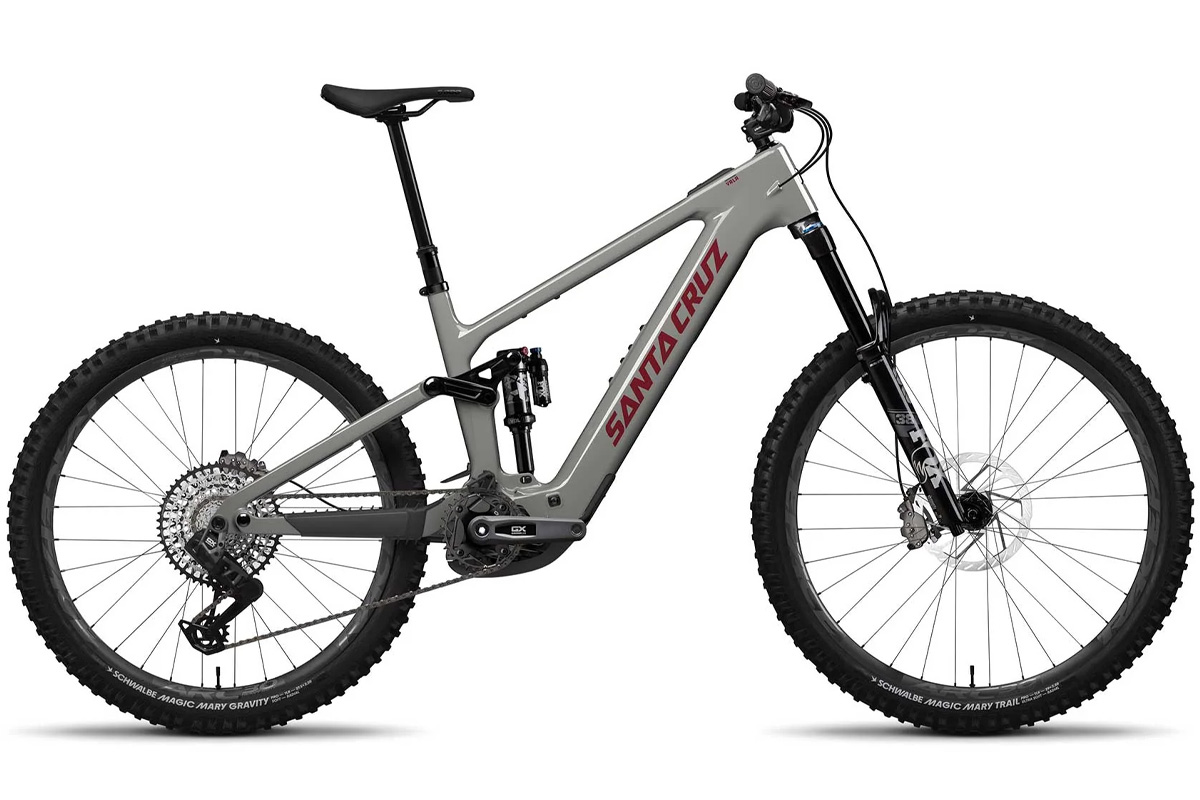

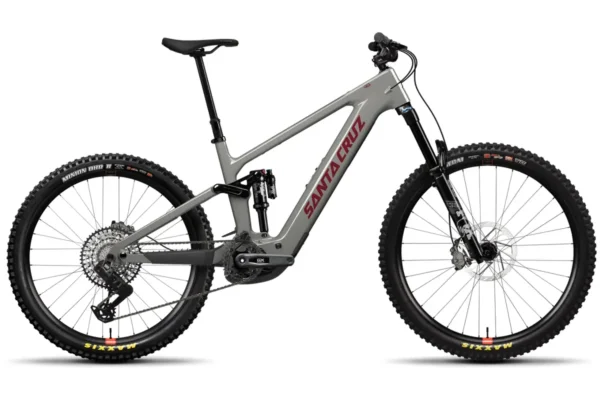

Santa Cruz Vala C GX AXS Electric Mountain Bike
The Santa Cruz Vala C GX AXS is a carbon full suspension electric mountain bike that combines Santa Cruz trail handling with the powerful Bosch Performance Line CX drive system. With 160 mm front and 150 mm rear travel, mixed 29 inch and 27.5 inch wheels and progressive trail geometry, the Vala is built for technical climbs, fast descents and big days exploring demanding trails.
Fox Performance Elite suspension provides control across rough terrain, while the SRAM GX Eagle AXS T-Type drivetrain delivers precise wireless electronic shifting. SRAM Maven Bronze brakes, Reserve 30|HD AL wheels and Maxxis tyres complete a capable build, with a Bosch PowerTube 600 Wh battery providing the energy for longer rides and more time on the trails.
Key Specifications
- Carbon C full suspension frame
- 160 mm front and 150 mm rear travel
- Fox 38 Float Performance Elite fork with Grip X2 damper
- Fox Float X Performance Elite rear shock
- Bosch Performance Line CX motor
- Up to 120 Nm torque with Bosch Performance Update 2.0
- Bosch PowerTube 600 Wh integrated battery
- SRAM GX Eagle AXS T-Type 12 speed wireless drivetrain
- SRAM Maven Bronze hydraulic disc brakes
- Reserve 30|HD AL mixed-size wheels
Carbon C Frame and Suspension
The Vala uses a Carbon C frame with a 4-bar suspension layout and 150 mm of rear travel. Its progressive trail geometry is designed to balance stability at speed with responsive handling through technical terrain, creating an e-MTB suited to both challenging climbs and demanding descents.
The mixed-wheel setup combines a 29 inch front wheel with a 27.5 inch rear wheel, giving the Vala the rollover capability of a larger front wheel while retaining responsive handling at the rear.
Fox Performance Elite Suspension
A Fox 38 Float Performance Elite fork provides 160 mm of front travel and uses a Grip X2 damper for control across rough and technical terrain. The fork is paired with a Fox Float X Performance Elite 205 x 60 mm rear shock controlling 150 mm of rear travel.
Together, the 160 mm front and 150 mm rear suspension platform gives the Vala the travel needed for rough trails, technical features and fast descents while maintaining support and control across varied terrain.
Bosch Performance Line CX Motor
The Bosch Performance Line CX motor provides smooth pedal assistance for technical climbs, long ascents and demanding trail riding. With Bosch Performance Update 2.0 installed on compatible Gen 5 Performance Line CX motors, assistance can be configured to deliver up to 120 Nm of torque, 750 watts of peak power and up to 600% support.
The 600% support level operates between 0 and 15 km/h, providing additional assistance for steep climbs and difficult technical sections, while the maximum assisted speed remains 25 km/h. Motor characteristics can also be customised through the Bosch eBike Flow app to suit different terrain and riding preferences.
600 Wh Integrated Battery
A Bosch PowerTube 600 Wh battery is integrated into the frame, providing the energy required for longer trail rides and extended climbing. The Bosch user interface and remote provide convenient access to assistance modes and ride information while on the bike.
SRAM GX Eagle AXS Transmission
SRAM GX Eagle AXS T-Type provides a 12 speed wireless electronic drivetrain designed for precise shifting on demanding mountain bike terrain. Electronic operation removes the need for a traditional mechanical shift cable and provides controlled gear changes when tackling changing gradients and technical trails.
SRAM Maven Brakes
SRAM Maven Bronze hydraulic disc brakes provide powerful braking for controlling the additional speed and weight of an electric mountain bike. SRAM HS2 200 mm rotors provide substantial braking surfaces at both ends of the bike for consistent control on steep and demanding descents.
Reserve Wheels and Maxxis Tyres
Reserve 30|HD AL wheels use a mixed-wheel configuration, with a 29 inch front wheel and 27.5 inch rear wheel. A Maxxis Assegai front tyre provides grip and control at the front, while a Maxxis Minion DHR II rear tyre provides traction for climbing and braking on technical trails.
Cockpit and Contact Points
OneUp components provide a trail-focused cockpit and dropper post setup, allowing riders to quickly create additional clearance when descending and tackling technical sections. An SDG Bel-Air V3 saddle completes the contact points for comfort and support during longer rides.
Who It’s For
The Santa Cruz Vala C GX AXS is for riders looking for a capable carbon electric mountain bike for technical trail and all-mountain riding. With 160 mm front and 150 mm rear travel, Bosch Performance Line CX power, wireless SRAM GX Eagle AXS shifting and a mixed-wheel setup, it is built for riders who want to tackle bigger climbs, demanding descents and longer days on challenging trails.
Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
