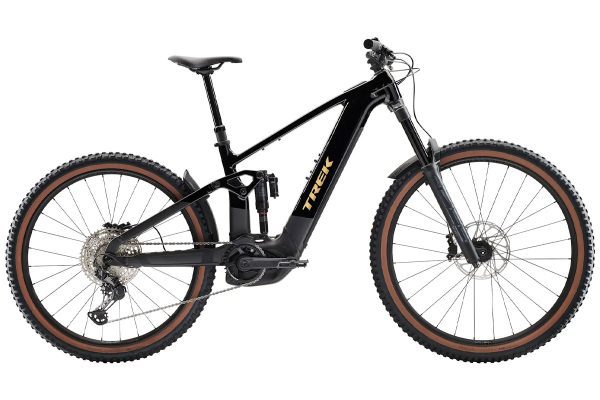

Trek Rail+ 8 Gen 5 2026 | Dark Star

Original price was: £5,000.00.Current price is: £4,199.00.

Trek Rail+ 8 Gen 5 Electric Mountain BikeBuilt for Big TerrainA powerful long-travel electric mountain bike designed for steep climbs, tough descents and all-day adventures.Key HighlightsBosch Performance Line CX motor – 85 Nm (upgradeable to 100 Nm)800 Wh battery for all-day riding (Removeable)160 mm travel front and rear (Piggyback rear — Read More

GTIN (UPC): 24TREKRAIL8GEN525BLK Categories: , , , , Brand:

Spread the cost from £114.67 monthly*

Buying Guides

Description

Trek Rail+ 8 Gen 5 Electric Mountain Bike

Built for Big Terrain

A powerful long-travel electric mountain bike designed for steep climbs, tough descents and all-day adventures.

Key Highlights

  • Bosch Performance Line CX motor – 85 Nm (upgradeable to 100 Nm)
  • 800 Wh battery for all-day riding (Removeable)
  • 160 mm travel front and rear (Piggyback rear with lockout)
  • MX wheel setup for stability and agility
  • Enduro-ready frame with Active Braking Pivot

Strong Bosch Smart System Performance

The Rail+ 8 uses Bosch’s latest Smart System with the Performance Line CX motor for smooth, adaptive power.

  • Optional upgrade to 100 Nm torque via the Flow app
  • Large 800 Wh PowerTube battery for extended range
  • RIB 2.0 system for simple battery removal when charging or travelling

Built for Tough Riding

The Alpha Platinum Aluminium frame is engineered for aggressive trail use, featuring 160 mm of controlled rear travel and Trek’s Active Braking Pivot for improved grip on steep, rough terrain.

Confident Handling on Technical Ground

  • RockShox ZEB Select fork for stability in demanding terrain
  • Adjustable leverage rate for either a plush or more progressive suspension feel
  • MX wheel setup:
    • 29″ front for rollover and stability
    • 27.5″ rear for agility and responsive handling

Reliable, Trail-Ready Components

  • Shimano XT/SLX drivetrain for dependable shifting under load
  • SRAM DB8 4-piston brakes for consistent stopping power
  • Bosch Kiox 400C display with USB-C charging
  • Tubeless-ready wheels and long-travel dropper post

Sizing Guide

  • Small: 155–165 cm
  • Medium: 165–177 cm
  • Large: 177–188 cm
  • Extra Large: 188–195 cm

Who Is This Bike For?

The Trek Rail+ 8 Gen 5 is ideal for riders who want a powerful, confidence-boosting electric mountain bike built for demanding trails, steep climbs and long days exploring big terrain.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Frame

Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered head tube, guided internal routing, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle, 160 mm travel
Rear Shock

RockShox Super Deluxe Select+ RT, 205mm x 65mm
Fork

RockShox ZEB Select, DebonAir spring, Charger RC damper, tapered steerer, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel
Stem

Bontrager Elite, 35 mm, 0-degree, 45 mm length
Handle Bars

Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Tape Grips

Bontrager XR Trail Comp, nylon lock-on
Brakes

SRAM DB 8 4-piston hydraulic disc
Rear Derailleur

Shimano XT M8100, long cage
Rear Hub

6-bolt, Boost110, 15 mm thru axle
Front Hub

6-bolt, Boost110, 15 mm thru axle
Shift Levers

Shimano SLX M7100, 12-speed
Cassette

Shimano Deore M6100, 10-51, 12-speed
Chainset

Shimano SLX M7100, 12-speed
Wheels

Bontrager Line Comp 30
Front Tyre

Bontrager Brevard Pro XR
Rear Tyre

Bontrager Brevard Pro XR
Saddle

Bontrager Verse P3, steel rails
Seat Post

Bontrager Line Dropper
Battery

Bosch PowerTube 800 Wh, smart system
Motor

Bosch Performance Line CX
Discipline

MTB
Material

Aluminium
Wheel size

29"
Electric

Yes
Season

2026
