Description

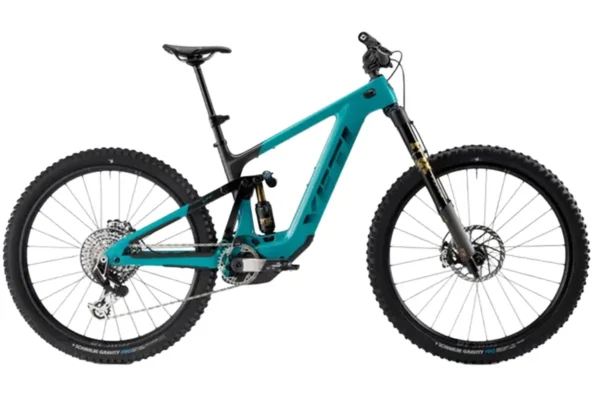

Yeti LTe T4 Factory Full Suspension Electric Mountain Bike
The Yeti LTe T4 Factory is a premium carbon full suspension electric mountain bike designed for demanding enduro riding, technical descents and challenging mountain terrain. Built around Yeti’s Sixfinity suspension platform, it combines 160 mm of rear travel with a 170 mm Fox Podium Factory fork and Fox Factory Float X2 rear shock. A Bosch Performance Line CX-R motor and integrated 800Wh PowerTube battery provide electric pedal assistance for steep climbs and extended trail sessions, while SRAM XX Eagle AXS Transmission delivers wireless electronic shifting.
Developed using Yeti’s experience in competitive electric enduro racing, the LTe T4 Factory brings together adjustable suspension progression, reinforced carbon construction and a high-end component specification. SRAM Maven Ultimate hydraulic disc brakes provide braking control for demanding descents, while DT Swiss HXC1700 wheels and a SRAM Reverb AXS dropper post complete the trail-focused build. With a 64-degree head tube angle, 78-degree effective seat tube angle and mixed-wheel compatibility, the LTe T4 Factory is designed for experienced riders who want an electric mountain bike capable of tackling technical terrain with confidence.
Key Specifications
- Frame: Yeti carbon fibre with Vectran reinforcement
- Suspension Platform: Yeti Sixfinity with adjustable progression
- Rear Suspension Travel: 160 mm
- Fork: Fox Podium Factory, 170 mm travel
- Rear Shock: Fox Factory Float X2
- Motor: Bosch Performance Line CX-R, BDU384Y
- Battery: Bosch PowerTube 800Wh
- Display: Integrated Bosch Kiox full-colour display
- Drivetrain: SRAM XX Eagle AXS Transmission
- Shifting: Wireless electronic
- Brakes: SRAM Maven Ultimate hydraulic disc
- Wheelset: DT Swiss HXC1700, 30 mm
- Wheel Size: 29 inch
- Wheel Compatibility: Mixed-wheel compatible with flip-chip adjustment
- Grips: ODI Reflex
- Dropper Seatpost: SRAM Reverb AXS
- Head Tube Angle: 64 degrees
- Effective Seat Tube Angle: 78 degrees
- Rear Axle Spacing: Boost148, 12 mm thru-axle
- Maximum Compatible Chainring Size: 34T
- Available Frame Sizes: Small, Medium, Large and Extra Large
- Recommended Use: Electric enduro, technical mountain biking and demanding trail riding
Carbon Frame with Vectran Reinforcement
The Yeti LTe T4 Factory features a carbon fibre frame enhanced with Vectran reinforcement in key areas. Developed through Yeti’s Special Projects programme, Vectran is a high-performance fibre selected for its impact resistance and strength. Additional reinforcement around the chainstays, seatstays, top tube and downtube helps protect areas exposed to impacts during demanding off-road riding.
The frame combines a 64-degree head tube angle with a 78-degree effective seat tube angle, creating geometry intended to balance stability on steep descents with an efficient seated climbing position. Boost148 rear axle spacing and compatibility with 32T to 34T chainrings complete the frame features identified in the supplied specification.
Yeti Sixfinity Suspension with Adjustable Progression
At the heart of the LTe T4 Factory is Yeti’s Sixfinity suspension platform, a six-bar linkage system developed to manage the demands of electric mountain biking. All six bars contribute to controlling the rear wheel path and shock leverage rate, allowing Yeti to tune the suspension for traction, acceleration, braking and support over challenging terrain.
The LTe provides 160 mm of rear wheel travel and features adjustable suspension progression through a flip-chip system. Riders can select between different progression settings to suit their riding style, terrain and preferred suspension response. This allows the bike to be configured for a more consistent suspension feel or a more progressive response with additional resistance towards the end of the travel. The result is a suspension platform designed to remain predictable when tackling technical descents, repeated impacts and demanding enduro trails.
Fox Podium Factory Fork with 170 mm Travel
The Yeti LTe T4 Factory is equipped with a Fox Podium Factory suspension fork offering 170 mm of front travel. This premium suspension component is designed for demanding mountain biking, where control over repeated impacts and support through technical terrain are particularly important.
With 170 mm of travel, the Fox Podium Factory fork provides the suspension capacity required for rocky descents, steep trail features and aggressive enduro riding. Paired with the LTe’s Sixfinity rear suspension, it creates a long-travel setup designed for riders who regularly tackle challenging mountain terrain.
Fox Factory Float X2 Rear Shock
A Fox Factory Float X2 rear shock manages the LTe T4 Factory’s 160 mm rear suspension travel. Paired with the Sixfinity linkage, the Float X2 is designed to provide controlled suspension movement across a wide range of trail conditions, from smaller repeated bumps to larger impacts.
The combination of the Float X2 shock and adjustable Sixfinity progression allows riders to refine how the rear suspension responds under load, making it particularly suitable for technical enduro riding where traction, support and predictable handling are important.
Bosch Performance Line CX-R Motor
The Yeti LTe T4 Factory uses the Bosch Performance Line CX-R drive unit, developed for performance-focused electric mountain biking. Designed to deliver responsive pedal assistance during demanding off-road riding, the CX-R supports riders tackling steep gradients, loose surfaces and technical uphill sections.
For riders, this means electric assistance when climbing back to the top of a descent and greater flexibility when planning demanding mountain bike routes. The motor is integrated into the LTe’s carbon frame, with the Sixfinity suspension platform tuned around the characteristics of the Bosch drive unit and the additional weight of an electric mountain bike.
Bosch PowerTube 800Wh Battery
An integrated Bosch PowerTube 800Wh battery provides the energy storage for the LTe T4 Factory’s electric assistance system. Its high-capacity design is intended for riders planning longer off-road adventures or repeated climbs during demanding trail sessions.
Actual riding range will depend on factors including assistance mode, rider weight, terrain, elevation gain, temperature and riding conditions.
Integrated Bosch Kiox Display
The LTe T4 Factory features an integrated full-colour Bosch Kiox display, giving riders access to important information including battery level, estimated remaining range, rider input, motor output and cadence. The display also provides access to additional riding features and connectivity through supported Bluetooth and ANT+ standards.
By displaying key information within the cockpit, the Kiox system makes it easier to monitor battery usage and riding data throughout a trail session.
SRAM XX Eagle AXS Transmission
The Yeti LTe T4 Factory features SRAM XX Eagle AXS Transmission, a premium wireless electronic drivetrain designed for demanding mountain biking. Electronic shifting allows riders to change gear using handlebar-mounted controls without a traditional mechanical shift cable.
The Transmission platform is designed to provide consistent shifting under pedalling load, making it particularly relevant to electric mountain biking where drivetrain forces can be substantial. For riders tackling technical climbs and rapidly changing terrain, precise gear selection helps maintain momentum and control.
SRAM Maven Ultimate Hydraulic Disc Brakes
SRAM Maven Ultimate hydraulic disc brakes provide the stopping power required for aggressive electric mountain biking. Designed for high-demand mountain biking applications, the Maven platform is particularly suited to controlling speed on steep descents and demanding technical terrain.
For a long-travel electric mountain bike, dependable braking is important when navigating extended descents, repeated hard braking zones and loose trail surfaces. The Maven Ultimate brakes complement the LTe T4 Factory’s enduro-focused suspension and drivetrain specification.
DT Swiss HXC1700 Wheels
The Yeti LTe T4 Factory rolls on DT Swiss HXC1700 wheels with 30 mm rims, providing a wheelset selected for demanding electric mountain bike riding. The wheels form part of a premium build intended to handle technical trails and aggressive descending.
The LTe is designed around 29-inch wheels, providing a setup suited to maintaining momentum and rolling over uneven ground. The frame also supports a mixed-wheel configuration through its flip-chip adjustment, allowing riders to explore different wheel setups while maintaining the intended geometry.
SRAM Reverb AXS Dropper Seatpost
The Yeti LTe T4 Factory features a SRAM Reverb AXS dropper seatpost, allowing riders to lower the saddle for technical descents and raise it again for efficient seated climbing. The wireless electronic system removes the need for a traditional mechanical dropper control cable.
Lowering the saddle creates more room to move around the bike when navigating steep or technical sections, helping riders maintain control and adjust their body position as the terrain changes.
Who Is the Yeti LTe T4 Factory For?
The Yeti LTe T4 Factory is designed for experienced mountain bikers looking for a premium electric enduro bike with advanced suspension technology and high-end components. Its 170 mm Fox Podium Factory fork, 160 mm Sixfinity rear suspension, Bosch Performance Line CX-R motor and 800Wh battery make it particularly suitable for steep mountain trails, technical descents, enduro riding and demanding off-road adventures.
For riders who prioritise suspension performance, wireless electronic shifting, powerful braking and the ability to tackle challenging terrain with electric assistance, the LTe T4 Factory combines Yeti’s race-developed suspension platform with a premium component specification.
Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.
