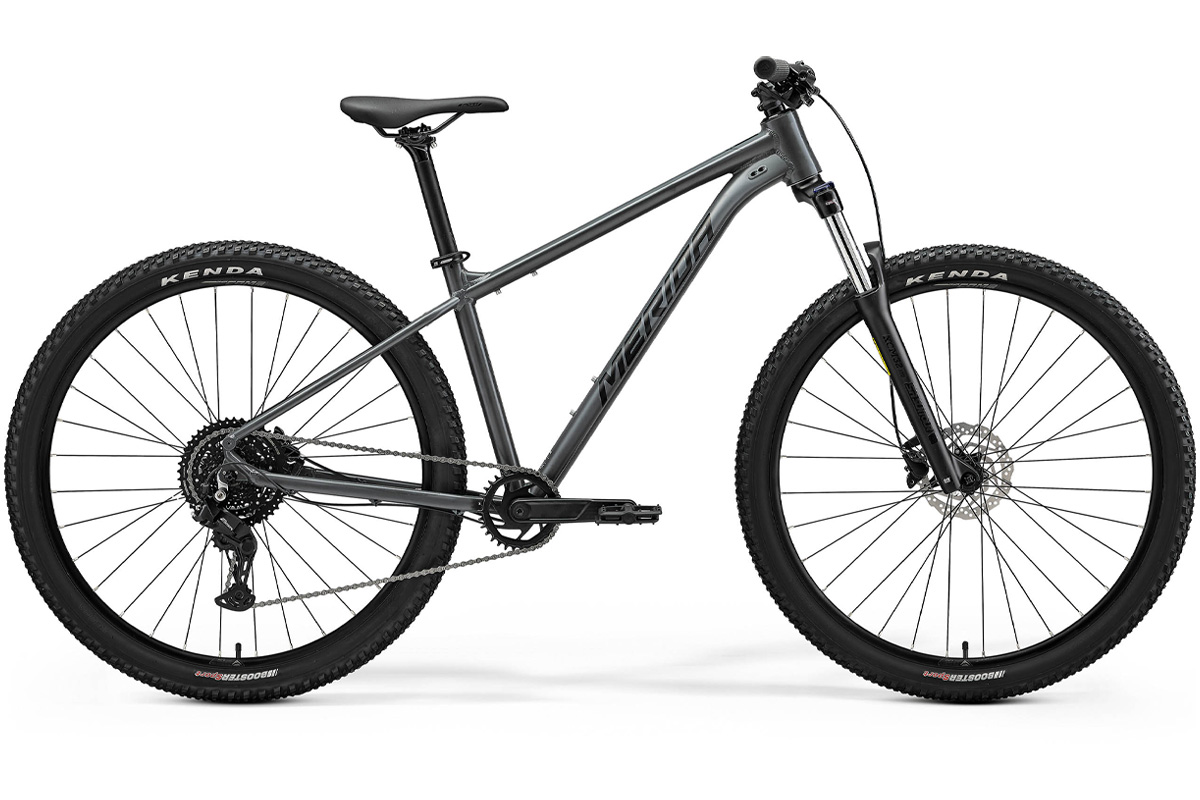

Merida Big Nine 20 2026

£725.00

Merida Big Nine 20 2026Hardtail Mountain BikeThe Merida Big Nine 20 2026 is a trail-ready 29er hardtail, combining modern mountain bike geometry with Merida’s renowned aluminium frame expertise. Built for both off-road capability and everyday versatility, it’s the perfect choice for riders looking for speed, efficiency, and control on technical — Read More

GTIN (UPC): 26MERIDABIGNINE20 Categories: , ,
Buying Guides

Description

Merida Big Nine 20 2026

Hardtail Mountain Bike

The Merida Big Nine 20 2026 is a trail-ready 29er hardtail, combining modern mountain bike geometry with Merida’s renowned aluminium frame expertise. Built for both off-road capability and everyday versatility, it’s the perfect choice for riders looking for speed, efficiency, and control on technical trails and beyond.

At the heart of the Big Nine 20 is Merida’s advanced TFS aluminium frame, crafted from double butted 6061 alloy and technoformed for durability and performance. The geometry follows the latest MTB trends, with a longer reach, shorter stem, steeper seat angle, and slacker head angle for improved handling and climbing efficiency. Internal cable routing, a tapered head tube, inboard disc brake mounts, and dropper post compatibility ensure a clean setup with future upgrade potential.

The bike is equipped with an SR Suntour XCM32 NLO coil fork offering 120mm of travel with lockout for efficient climbing. A Shimano 1×8-speed drivetrain with an 11-45T cassette provides a wide gear range for tackling steep climbs and fast descents, while Shimano MT200 hydraulic disc brakes deliver reliable stopping power in all conditions. Kenda Booster 29×2.4″ tyres add grip and stability, and Merida’s Comp CC finishing kit rounds off the build.

Key Features

  • Merida TFS V 6061 aluminium frame with trail-focused geometry

  • Internal cable routing, tapered head tube, and inboard disc brake mounts

  • SR Suntour XCM32 NLO fork with 120mm travel and lockout

  • Shimano 1×8 drivetrain with 32T chainset and 11-45T cassette

  • Shimano MT200 hydraulic disc brakes with 160mm rotors

  • Kenda Booster 29×2.4″ tyres for grip and control

  • Merida Comp CC aluminium components and wheels

  • Dropper post ready for future upgrades

  • Sizes available: Big Nine for taller riders, Big Seven for shorter riders

The Merida Big Nine 20 2026 blends trail performance with everyday rideability, making it an excellent choice for new and progressing mountain bikers who want a reliable hardtail with modern geometry, proven components, and upgrade-ready features.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Fork

SR Suntour XCM32 NLO; Coil; 120 mm travel; lockout; 29×2.4" max. tyre size
Head Set

FSA NO.55R/57SC/57B
Stem

Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handle Bars

Merida CC; material: aluminium; 15mm rise; S – 720mm wide, (M-L) – 740mm wide, (XL-XXL) – 760mm wide
Tape Grips

Merida EC
Brakes

Hydraulic Disc
Rear Derailleur

Shimano Essa RD-U2000-8; GS
Rear Hub

Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Hub

Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Shift Levers

Rear: Shimano Essa SL-315-8R
Cassette

Shimano CS-HG300-8; 11-45 teeth; 8 speed
Chainset

Prowheel Epro-MD26S; 32 tooth chainset; material: aluminium; Crank length: S – 165mm, (M-XXL) – 170mm
Pedals

VP VPE 536
Wheels

Merida Comp CC; 20mm inner rim width; material: aluminium
Front Tyre

Kenda Booster; 29×2.4"
Rear Tyre

Kenda Booster; 29×2.4"
Saddle

Merida Sport
Seat Post

Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size

29"
Discipline

MTB
Electric

No
Season

2026
