Merida_Big_Nine_40_2026_Black_Red_1

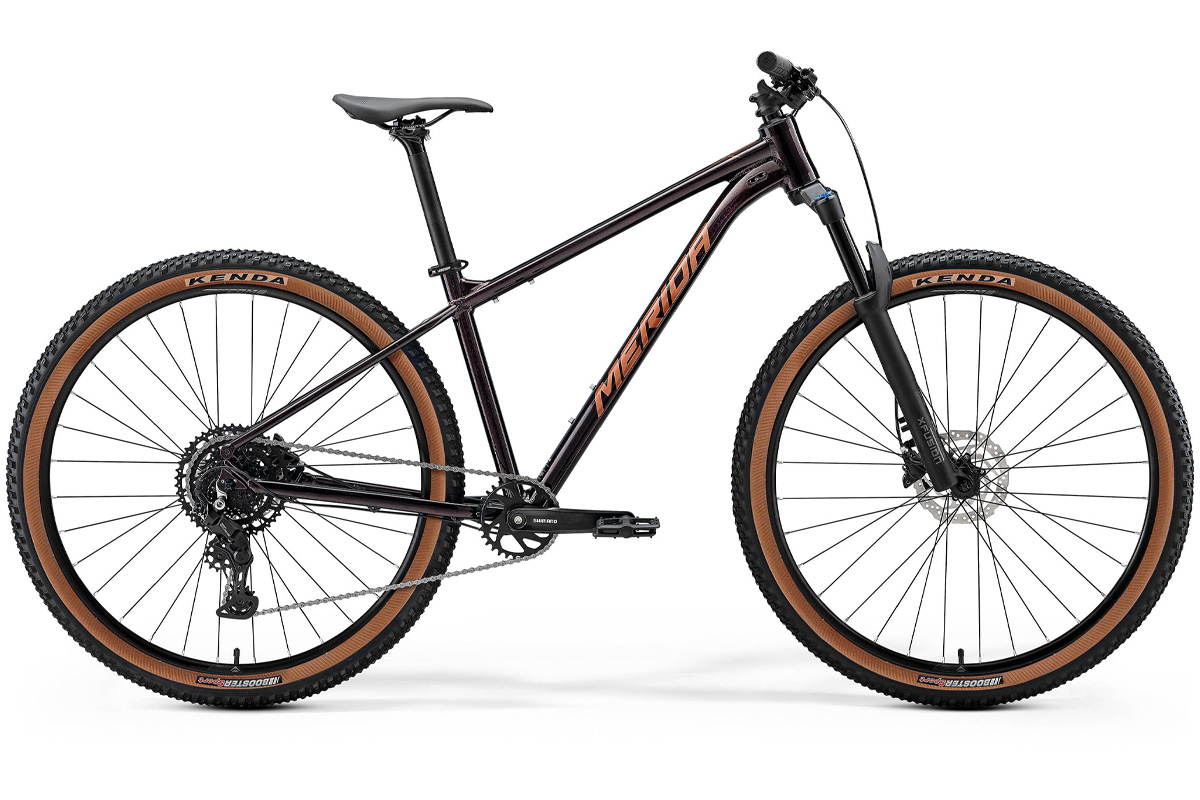

Merida Big Nine 40 2026

£825.00

Merida Big Nine 40 2026Aluminium Hardtail Mountain BikeThe Merida Big Nine 40 2026 is the perfect introduction to proper mountain biking, combining modern geometry, durable aluminium construction, and reliable Shimano components. With 29” wheels, a 120mm air fork, and trail-ready features, this hardtail is built to inspire confidence both off-road — Read More

GTIN (UPC): 26MERIDABIGNINE40 Categories: , ,
Buying Guides

Description

Merida Big Nine 40 2026

Aluminium Hardtail Mountain Bike

The Merida Big Nine 40 2026 is the perfect introduction to proper mountain biking, combining modern geometry, durable aluminium construction, and reliable Shimano components. With 29” wheels, a 120mm air fork, and trail-ready features, this hardtail is built to inspire confidence both off-road and on everyday rides.

Merida has been refining aluminium hardtails for over 50 years, and the latest Big Nine follows progressive mountain bike trends. A longer reach paired with a shorter stem delivers greater control, while the steeper seat angle and slacker head angle enhance climbing efficiency and downhill stability. The sophisticated TFS aluminium frame includes full internal cable routing for a clean finish, a tapered head tube for future upgrades, inboard disc brake mounts for maximum stopping power, and dropper post compatibility.

The Big Nine 40 comes equipped with a smooth 120mm X-Fusion Migo 32 Air fork with lockout, a Shimano 1×9 CUES drivetrain for dependable shifting, and Shimano MT200 hydraulic disc brakes for consistent stopping power in all conditions. Rolling on 29” wheels with Kenda Booster 2.4” tyres, this bike delivers speed, grip, and comfort across a variety of trails.

Key Features

  • Updated TFS aluminium frame with internal cable routing and dropper post ready

  • Trail-ready geometry with modern reach, head angle, and seat tube design

  • 120mm X-Fusion Migo 32 Air fork with lockout

  • Shimano 1×9 CUES drivetrain with 11-46T cassette

  • Shimano MT200 hydraulic disc brakes with 160mm rotors

  • 29” Merida Comp CC wheels with Kenda Booster 2.4” tyres

  • Size-tuned Merida finishing kit for optimised fit and handling

The Merida Big Nine 40 2026 is the ultimate starting point for riders wanting to experience true mountain biking. Whether tackling singletrack trails, forest routes, or everyday paths, this 29er hardtail offers durability, comfort, and performance in one versatile package.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.

Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.

Specification

Fork

X-Fusion Migo 32 Air; 120 mm travel; lockout; max. 29×2.4" max. tyre size
Head Set

FSA NO.55R/57SC/57B
Stem

Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Handle Bars

Merida CC; material: aluminium; 15mm rise; S – 720mm wide, (M-L) – 740mm wide, (XL-XXL) – 760mm wide
Tape Grips

Merida Comp TR
Brakes

Hydraulic Disc
Rear Derailleur

Shimano Cues U4000; GS
Rear Hub

Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Hub

Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Shift Levers

Rear: Shimano Cues U4000
Cassette

SunRace U9 CS-U980 9AZ; 11-46 teeth; 9 speed
Chainset

Shimano Cues UT400-1; 32 tooth chainset; material: aluminium ; Crank length: S – 165mm, (M-XXL) – 170mm
Pedals

VP VPE 536
Wheels

Merida Comp CC; 20mm inner rim width; material: aluminium
Front Tyre

Kenda Booster; 29×2.4"
2nd color option: Booster 29×2.4 tanwall
Rear Tyre

Kenda Booster; 29×2.4"
2nd color option: Booster 29×2.4 tanwall
Saddle

Merida Comp SL
Seat Post

Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size

29"
Discipline

MTB
Electric

No
Season

2026
