Brand New From Whyte
The KADO S & KADO RSX Electric Mountain Bikes
If you can dream it, you can do it
With an all-new, ground-up design, the latest fifth generation Bosch Performance Line CX motor and batteries, a choice of frame materials (full carbon fibre, carbon/alloy mix, and full aluminium), a low centre of gravity for
the best handling, curated parts and much more, Kado has been created to help you realise your riding dreams.
Kado at a glance
Rides like a dream
Whyte have poured everything into Kado to give you the best handling and ride performance possible: an optimised low centre of gravity which is even lower and more central than the outgoing E-160; custom-tuned suspension; confidence-inspiring geometry, and much more. All masterfully combined to help you realise your riding dreams
Go the distance
With up to 800Wh* internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately), Kado is ready to give you up to 1050Wh of combined battery capacity. All so you can ride as far as your imagination can take you.
Unparalleled refinement
The very latest Bosch motor and battery technologies deliver you the most refined, reliable and efficient motor performance. 600W peak power. 85Nm of torque. All tuneable to your tastes via the Bosch eBike Flow app and ready to be optimised further via incoming software updates.
Master any terrain
Whatever you dream of, Kado can help you conquer even the roughest, most technical terrain with its perfect triad of traction, power and control. Our confidence-inspiring Total Geometry handling; 160mm/150mm of custom-tuned suspension travel; feedback-rich and powerful four-pot hydraulic brakes; the refined power delivery of Bosch’s latest CX motor.
Removable battery
We’ve made removing Kado’s internal slide-in internal battery a cinch for storage, battery swaps, or off-the-bike charging: just open the battery cover, unclip the battery connector, undo the captive bolt, and slide the battery out. Simple. By not cutting a compromising hole in the downtube, we’ve also maximised the frame’s strength and minimised its weight.
Made to last
Engineered for longevity and reliability to stay on the trail – and out of the workshop. Whyte have designed, tested, and proven every Kado in their native UK, riding all year round through the best and the worst of conditions. Riding through the foulest winters means they’ve added a whole host of weather-proofing touches that may not grab headlines but will keep you riding sweeter and for longer.
All-new chassis
Kado’s chassis is ground-up, brand-new and available in three choices of materials to suit different tastes and budgets: full carbon (Kado RSX), carbon front triangle/alloy rear triangle (Kado RS), and full aluminium (Kado S).
Kado frame features
Choice of carbon or alloy frames
Three models, three frame material choices: full-carbon fibre (Kado RSX), carbon/alloy mix (Kado RS), and full aluminium (Kado S) frames in a choice of colours so you can choose what suits you best.
Removeable internal battery
Easy to remove internal batteries make life a simple for charging or storing the batteries off the bike, as well as for car park or mid-ride battery swaps.
Low centre of gravity
A lower centre of gravity delivers a better handling and more confidence-inspiring ride in all situations. Custom-tuned suspension Whyte custom-tuned rear suspension delivers perfect performance, wherever the trail takes you.
29er wheels
29er carbon wheels front and rear that are light, tough and compliant to give you every advantage across any trail.
Geometry adjustment
Switch from ‘High’ to ‘Low’ – to slacken geo by 0.6º and lower the bottom bracket by 8mm – for more gravity-friendly handling.
Takes a waterbottle
Take water with you on any Kado with space for a water bottle on every frame size.
Tube-in-tube internal cable routing
Carbon Kado’s have fully lined internal hose and cable runs through both the frame’s front and rear triangles to make cable and hose changes as easy as A-B-C.
Switchable rear wheel
You can swap the rear wheelsize by changing the ‘Shape.It’ link to go from full 29er front and rear to MX (aka ‘mixed wheels – 29in front, 27.5in rear).
All Kado bikes are ready to convert to a MX (aka mullet) wheel set-up (29in front, 27.5in rear wheel) so you can tailor their ride to exactly how you want – and all without affecting the geometry or the suspension kinematics. Just replace the bike’s stock Shape.It Link with our Shape.It Link L (62-66mm), together with a suitable ASTM/EN17406 rated rear wheel (category 4, enduro) laced with an eBike rated rear hub.

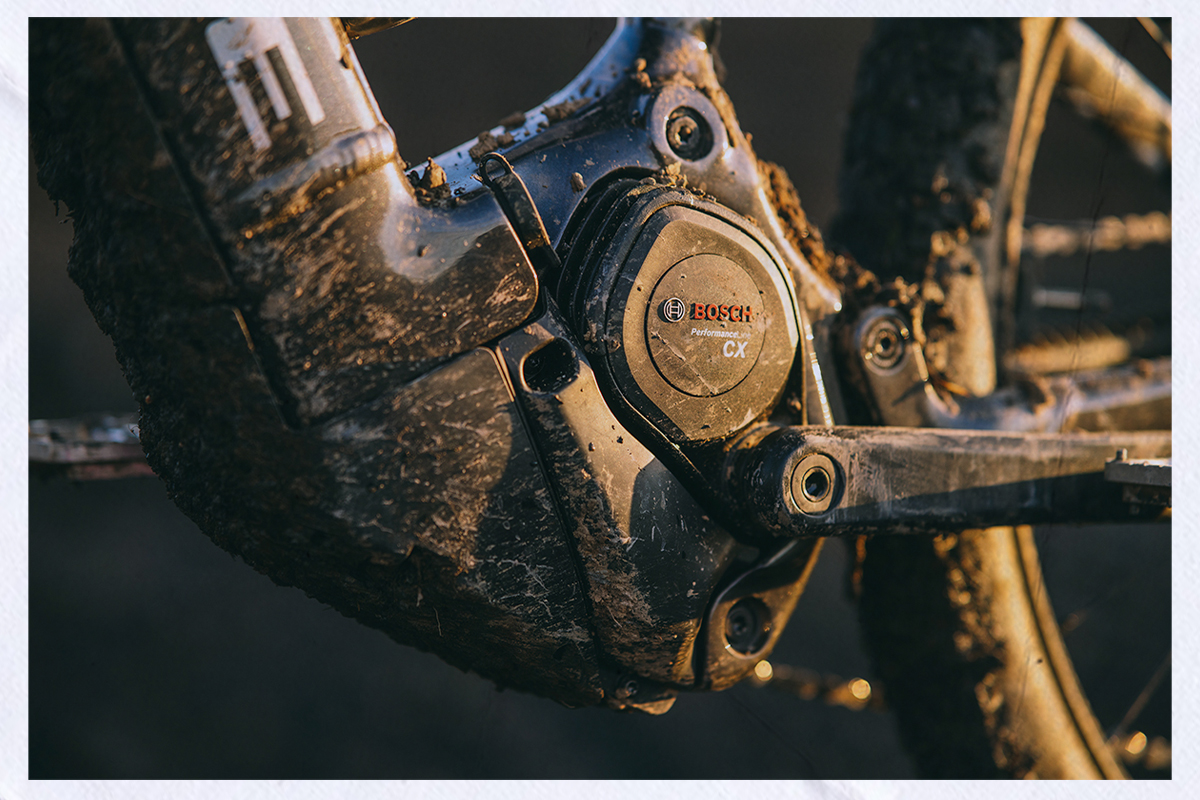

The motor system
Bosch’s very latest high performance, ultra-responsive fifth generation Performance Line CX 85Nm motor and battery technologies deliver Bosch’s most refined, reliable and efficient performance ever. 600W peak power. 85Nm of torque. All tuneable to your tastes via the Bosch eBike Flow app., and ready to be optimised further via incoming software updates.
Bosch motor system features
The latest Bosch CX power motor
Bosch’s all-new Performance Line SCX full-torque (85Nm), full-power (600W) motor is quieter, lighter, and even more refined.
Up to 800Wh internal battery
Bosch’s latest, most efficient batteries give you more range for less weight than Bosch’s previous batteries. Choose from 600Wh or 800Wh batteries, depending on model and your country.
Minimal controls
Bosch’s Mini Remote and System Controller deliver a clean cockpit with everything you need for the ride but nothing you don’t.
Performance features
Short cranks
Short 155mm cranks deliver maximum ground clearance on RS and RSX models, with 160mm lengths on S models.
Fox and RockShox suspension
High-quality, high-performance suspension units – with meticulously custom-tuned rear shocks to smooth out the rough. Kado is also compatible with coil shocks.
Four-piston brakes
Powerful and controlled four-piston hydraulic disc brakes with oversized rotors for richly useable power.
Full-drop dropper posts
Size specific, full-drop dropper posts give you room to manoeuvre on even the steepest terrain.
Wide bars
Full 800mm wide bars give you the leverage to wrestle even the roughest lines into shape, and let you cut them down to your preferred width, too.
MaxxGrip tyres
Kado RSX and RS bikes benefit from Maxxis’ most grippiest compounds, partnered with puncture-resistant EXO+ and Double Down (DD) sidewall protection for durability.
Wide-range gearing
Take on any climb with wide-range 10-52T 1x transmissions on Kado RSX and RS bikes.
Durability features
Weather-sealed
Keep the water out with weatherproofing features, such as sealed cable and hose ports, seat-clamp collar seal*, and more.
*Kado S models
Protected charge port
The charge port is positioned out of the firing line of rear wheel spray, together with a weather-proof cover.
Integrated rear fender
Keeps the mud and spray from going where it shouldn’t.
2.5in tyre clearance
Generous mud clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down.
Armoured frame
Frame protection on the lower downtube and chainstay help keep the frame in great shape.
Kado RSX Gloss Light Silver & Kado RSX Gloss Midnight Blue
“Get ready to experience a ride that will reset all expectations. Kado RSX. Our most capable electric mountain bike (eMTB) ever.”
Enduro/trail bike (category 4: Enduro-rated)
Full carbon fibre frame with geometry adjustment
160mm front + 150mm rear of custom-tuned travel
Bosch’s newest Performance Line CX motor
800Wh removeable internal battery
Compatible with Bosch’s 250Wh PowerMore range extender (sold separately)
29in trail-smoothing wheels front and rear
Fox Float 38 Performance Elite fork and Float X Performance Elite DPS EVOL LV shock
Magura MT7 brakes
SRAM T-Type AXS Eagle 1×12 wireless electronic gearing
Available in S, M, L + XL frame sizes
Choice of two colours

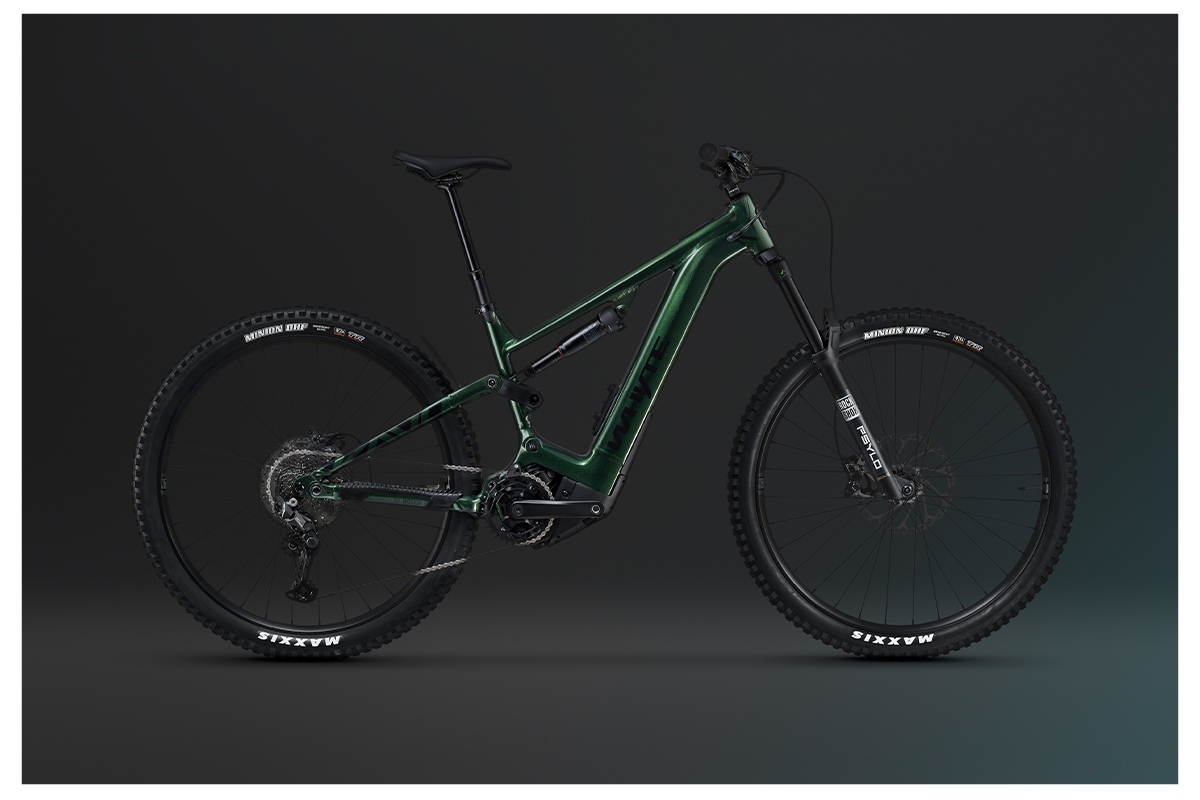

Kado S Gloss Dark Silver & Kado S Metallic Aston Green
Whyte’s most affordable eMTB ever. The confidence-inspiring Kado S delivers high performance with a ‘high value’ price to give you the range, power and capability to realise your riding dreams – without breaking the bank.
Trail/enduro bike (category 4: Enduro-rated)
6061 T-6 aluminium frame with geometry adjustment
160mm front + 150mm rear of custom-tuned travel
Bosch’s newest Performance Line CX motor
600Wh removeable internal battery
Compatible with Bosch’s 250Wh PowerMore range extender (sold separately)
29in trail-smoothing wheels front and rear
RockShox Psylo Gold fork and Deluxe Select R shock
Shimano M4100 four-piston brakes
Shimano Cues 1×11 transmission
Available in S, M, L + XL frame sizes
Choice of two colours
The All New Whyte Kado Range is available to order at Wheelbase.co.uk. Delivered partially built directly to your home. We also offer 0% Finance and accept a wide array of Cycle To Work vouchers.
Please feel free to contact our customer service team if you would like more information about the Kado range.
