Description

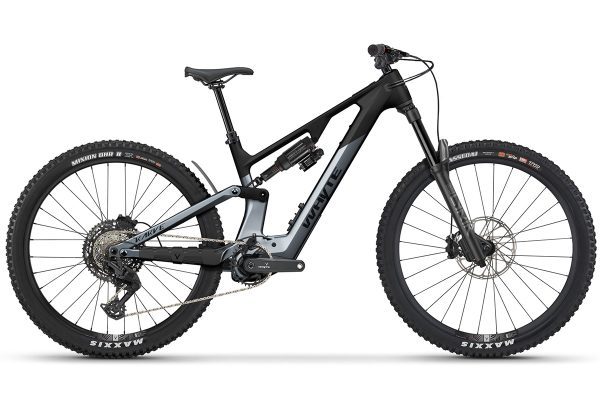

Whyte Karve RS Electric Mountain Bike

Furiously fast and powerfully capable, the Karve RS is built for riders who want maximum thrills on the most demanding trails. With 160 mm of custom tuned suspension, full power support from the Avinox M2S drive unit and Whyte’s proven enduro geometry, it delivers confident handling and serious speed across technical climbs and committed descents. The lightweight carbon and alloy chassis keeps the bike responsive, while the 800 Wh battery and full torque motor give you the range and punch to ride harder, further and faster.

Key Features

• 160 mm front and 160 mm rear custom tuned suspension
• RockShox Lyrik Select 29 in fork and Super Deluxe Select rear shock
• Uni directional carbon front triangle with 6061 T6 aluminium rear
• Avinox M2S drive unit with 150 Nm max torque and 1300 W peak power
• 250 W nominal power with five power modes including Auto and Boost
• DP100 OLED top tube display with wireless controller
• AXS derailleur powered directly from the motor with SmoothShift
• 800 Wh internal non removable battery with fast charger
• SRAM Eagle 90 mechanical T Type 1×12 transmission
• SRAM Maven Base four piston hydraulic brakes
• 29 in wheels front and rear, MX ready
• Adjustable travel full insertion dropper post with size specific drop
• Proportional sizing, geometry adjustment and UDH dropout

Full Power Avinox M2S Drive

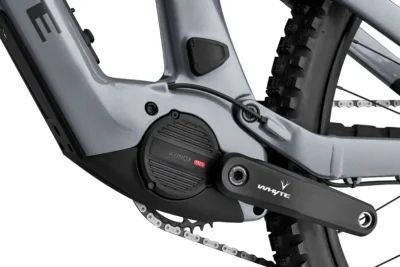

The Avinox M2S system delivers 150 Nm of maximum torque, 1300 W of peak power and 250 W of nominal output for strong climbing support and rapid acceleration. Five power modes, including Auto and Boost, let you match assistance to the terrain. The AXS derailleur is powered directly from the motor and uses SmoothShift for consistent, load tolerant gear changes. The DP100 OLED display sits cleanly on the top tube and pairs with a wireless controller for simple mode changes. The 800 Wh internal battery provides long range performance with fast charging for quick turnaround between rides.

Balanced 160 mm Suspension

The RockShox Lyrik Select fork and Super Deluxe Select rear shock are tuned specifically for the Karve RS. The 160 mm travel front and rear gives the bike the control and support needed for enduro level terrain while keeping the ride lively on flowing trails.

Carbon And Alloy Chassis

A uni directional carbon fibre front triangle keeps weight low and stiffness high, while the 6061 T6 aluminium rear triangle adds durability. Proportional sizing ensures consistent handling across all frame sizes, and the geometry flip chip lets you fine tune the ride for different terrain.

Trail Ready Components

SRAM Eagle 90 mechanical T Type shifting provides reliable 1×12 performance, and SRAM Maven Base brakes deliver strong, consistent stopping power. The 29 in wheels roll fast and smooth, with MX compatibility for riders who want a mullet setup. The full insertion dropper post offers size specific drop for confident movement on steep ground.

Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
