Description

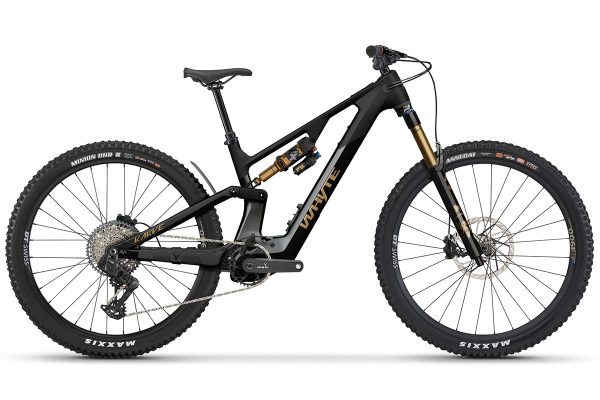

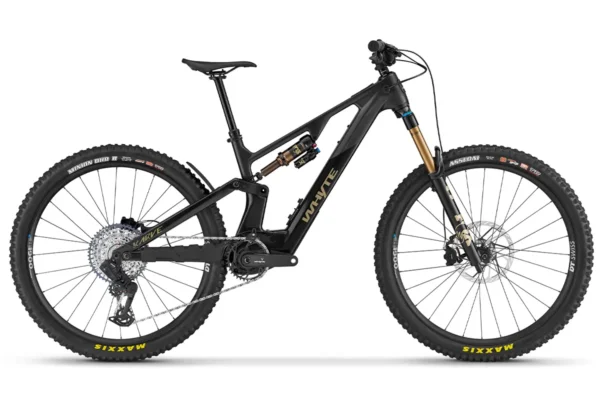

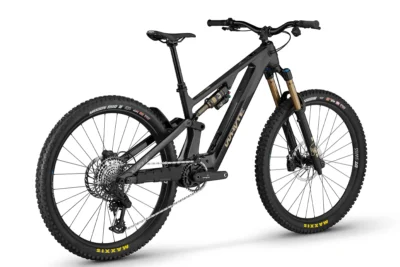

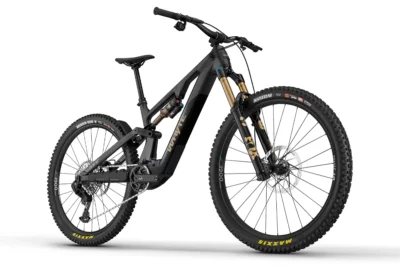

Whyte Karve RSX Electric Mountain Bike
The Karve RSX is built for riders who want the biggest kicks on the most challenging trails. With full power support from the Avinox M2S drive unit, a premium Fox Factory suspension package and a full carbon chassis, it delivers extreme performance with precise, confident handling. The 160 mm travel platform is tuned for aggressive riding, giving you the control, support and speed needed for enduro terrain while staying lively on flowing singletrack. This is the new master of high performance eMTB riding.
Key Features
- 160 mm front and 160 mm rear custom tuned suspension
- Fox Float 36 Factory fork and Fox Float X Factory DPS rear shock
- Uni directional full carbon fibre frame
- Avinox M2S drive unit with 150 Nm max torque and 1300 W peak power
- 250 W nominal power with five power modes including Auto and Boost
- DP100 OLED top tube display with wireless controller
- AXS derailleur powered directly from the motor with SmoothShift
- 800 Wh internal non removable battery with fast charger
- SRAM AXS Eagle 1×12 transmission
- SRAM Maven Silver four piston hydraulic brakes
- DT Swiss Hybrid H1900 29 in wheels, MX ready
- Adjustable travel full insertion dropper post with size specific drop
- Proportional sizing, geometry adjustment and UDH dropout
Full Power Avinox M2S Drive
The Avinox M2S system delivers 150 Nm of maximum torque, 1300 W of peak power and 250 W of nominal output for rapid acceleration and strong climbing support. Five power modes, including Auto and Boost, let you tailor assistance to the terrain. The AXS derailleur is powered directly from the motor and features SmoothShift for consistent, load tolerant gear changes. The DP100 OLED display sits cleanly on the top tube and pairs with a wireless controller for simple mode changes. The 800 Wh internal battery provides long range performance with fast charging for quick turnaround between rides.
Premium Fox Factory Suspension
The Fox Float 36 Factory fork and Fox Float X Factory DPS rear shock give the RSX a highly controlled, responsive feel. The 160 mm travel front and rear is tuned specifically for the Karve platform, offering the support and sensitivity needed for steep, technical and high speed terrain.
Full Carbon Chassis
The uni directional full carbon frame keeps weight low and stiffness high, giving the bike sharp handling and a precise feel on demanding trails. Proportional sizing ensures consistent ride characteristics across all frame sizes, and the geometry flip chip lets you fine tune the setup for different terrain.

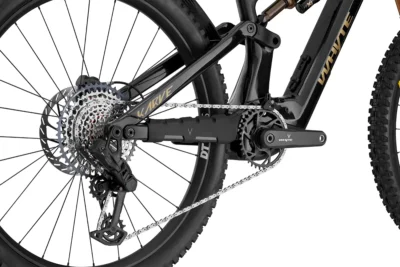

High Performance Components
SRAM AXS Eagle wireless shifting delivers smooth, precise 1×12 performance, while SRAM Maven Silver brakes provide powerful, consistent stopping control. DT Swiss Hybrid H1900 wheels offer strength and reliability for aggressive riding, with MX compatibility for riders who want a mullet setup. The full insertion dropper post provides size specific drop for confident movement on steep ground.
Bike specifications are advised by the manufacturer and can be subject to change without prior warning.
Please call our helpful sales team on 01539 821 443 or email us for the latest up-to-date product information.
